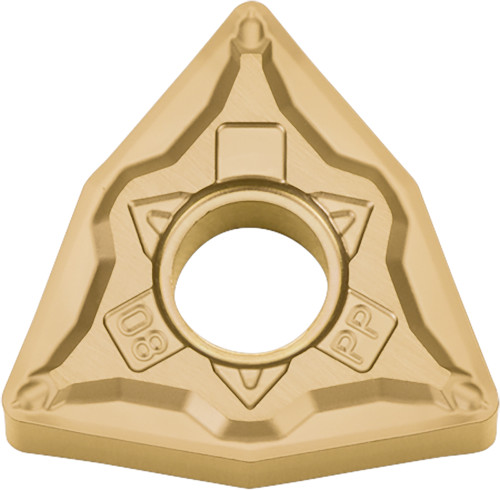

Kyocera Turning Insert WNMG4305PP CA025P: TMH00061

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMH00061
$19.23

Kyocera ISOI turning insert for steel, 1/2 in (12.70 mm) IC, 80 degree trigon shape, negative rake, 6 cutting edges, finishing cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TMH00061.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
IC Size (Metric)
12.70
Included Angle
80
Corner Radius (Decimal)
0.0080
Insert Style
WNMG
Insert Thickness (Fractional)
3/16
Insert Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Insert Size
4305
Insert Thickness (Metric)
4.76
Machining Operations
Boring, External Turning, Facing, Internal Facing
Rake
Negative
IC Size (Fractional)
1/2
Corner Radius (Metric)
0.20
Number of Cutting Edges
6
Insert Grade
CA025P
Chip Breaker Type
PP
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
ISO Designation
WNMG080402PP
Workpiece Material
Steel
ANSI Designation
WNMG4305PPCA025P
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/PP_PQ_Chipbreakers_Turning_Kyocera.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA025P_CVD_Coated_Carbide_for_Steel.pdf
Coating Process
CVD
