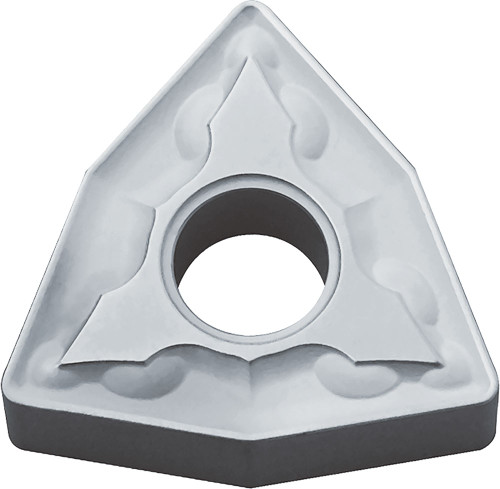

Kyocera WNMG 431GS TN620 Grade Uncoated Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSR08580
$18.87
Kyocera WNMG 431GS TN620 Grade Uncoated Cermet, 0 Degree, Trigon, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Medium-Roughing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/64 Inch
Included Angle
80 degrees
Thickness
3/16 Inch
Style
WNMG
Application
Boring, External Turning, Facing, Internal Facing
Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Size
431
Old Material Number
8862837
ANSI Part Number
WNMG431GSTN620
ISO Part Number
WNMG080404GS
Rake
Negative
Material Group / Grade
TN620
Corner Radius (Metric)
0.40
Number of Cutting Edges
6
Thickness (Metric)
4.76
Chipbreaker
GS
Cutting Range
Medium-Roughing
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
