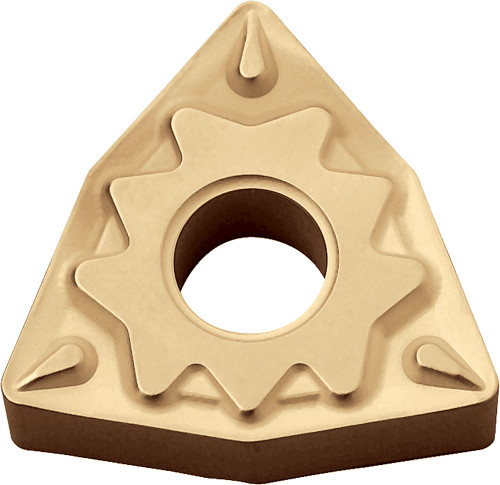

Kyocera Turning Insert WNMG431HQ CCX: TMJ00114

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMJ00114
$19.23

Kyocera Turning Insert WNMG431HQ CCX, manufacturer part number TMJ00114.

Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8863191; Rake: Negative; Number of Cutting Edges: 6; Cutting Range: Finishing-Medium; Usage Classification: Continuous; Insert Size: 431; Hand Direction: Neutral; Insert Style: WNMG; Insert Shape: 80 Degree Trigon; ANSI Designation: WNMG431HQCCX; Chip Breaker Type: HQ; ISO Designation: WNMG080404HQ; Included Angle: 80 degrees; Machining Operations: Boring, External Turning, Facing, Internal Facing; Insert Grade: CCX; Workpiece Material: Steel, Cast Iron; Coating Process: CVD.

Material: Cermet. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/64
Included Angle
80
ANSI Designation
WNMG431HQCCX
Insert Style
WNMG
Insert Thickness (Metric)
4.76
Insert Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Insert Size
431
Old Material Number
8863191
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Grade
CCX
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
0.40
Number of Cutting Edges
6
Workpiece Material
Steel, Cast Iron
ISO Designation
WNMG080404HQ
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Fractional)
1/2
Coating Process
CVD
Chip Breaker Type
HQ
Pack quantity
10
