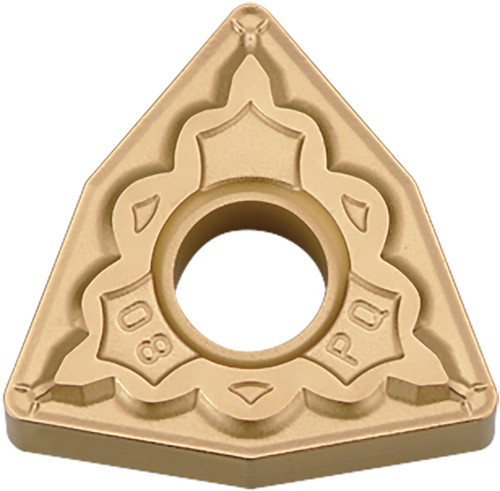

Kyocera Turning Insert WNMG431PQ PV730: TLP00556

Kyocera Turning Insert WNMG431PQ PV730, manufacturer part number TLP00556.

Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8866315; Rake: Negative; Number of Cutting Edges: 6; Cutting Range: Finishing-Medium; Usage Classification: Continuous to Heavy Interruption; Insert Size: 431; Hand Direction: Neutral; Insert Style: WNMG; Insert Shape: 80 Degree Trigon; ANSI Designation: WNMG431PQPV730; Chip Breaker Type: PQ; ISO Designation: WNMG080404PQ; Included Angle: 80 degrees; Machining Operations: Boring, External Turning, Facing, Internal Facing; Insert Grade: PV730; Workpiece Material: Steel; Coating Process: PVD.

Material: Cermet. Coating/Finish: TiAlN/TiN. Series: ISOI. Unit of measure: Inch.
