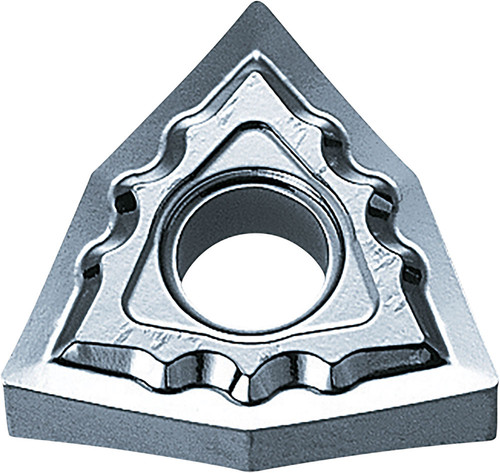

Kyocera WNMG 432AH KW10 Grade Uncoated Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE64432
$24.65
Kyocera WNMG 432AH KW10 Grade Uncoated Carbide, 0 Degree, Trigon, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Medium-Roughing in (N) Non-Ferrous Metals, (S) Titanium Alloy and (K) Gray Cast Iron

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials|(S) Titanium Alloy
Corner Radius
1/32 Inch
Included Angle
80 degrees
Thickness
3/16 Inch
Style
WNMG
Application
Boring, External Turning, Facing, Internal Facing
Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Size
432
Old Material Number
8808342
ANSI Part Number
WNMG432AHKW10
ISO Part Number
WNMG080408AH
Rake
Negative
Material Group / Grade
KW10
Corner Radius (Metric)
0.80
Number of Cutting Edges
6
Thickness (Metric)
4.76
Chipbreaker
AH
Cutting Range
Medium-Roughing
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
