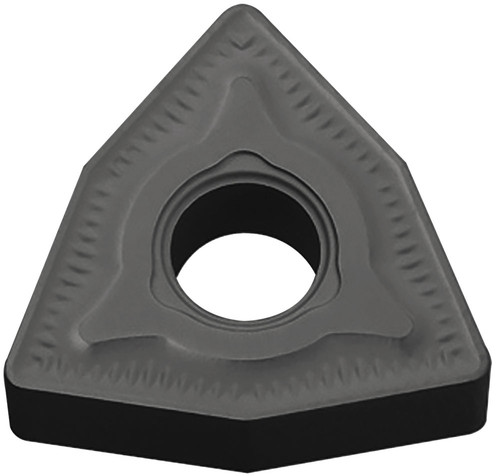

Kyocera WNMG 432GC CA4515 Grade CVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TJH08430
$19.23
Kyocera WNMG 432GC CA4515 Grade CVD Carbide, 0 Degree, Trigon, Negative Rake Angle, Neutral Turning Insert for Heavy Interruption and Roughing in (K) Gray Cast Iron, (K) Nodular Cast Iron

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(K) Gray Cast Iron|(K) Nodular Cast Iron
Corner Radius
1/32 Inch
Included Angle
80 degrees
Thickness
3/16 Inch
Style
WNMG
Application
Boring, External Turning, Facing, Internal Facing
Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Size
432
Old Material Number
8831511
ANSI Part Number
WNMG432GCCA4515
ISO Part Number
WNMG080408GC
Rake
Negative
Material Group / Grade
CA4515
Corner Radius (Metric)
0.80
Number of Cutting Edges
6
Thickness (Metric)
4.76
Chipbreaker
GC
Cutting Range
Roughing
Usage Classification
Heavy Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA45-Series-8pg-Brochure.pdf
Kyocera WNMG 432GC CA4515 Grade CVD Carbide, Indexable Turning Insert
$19.23
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
