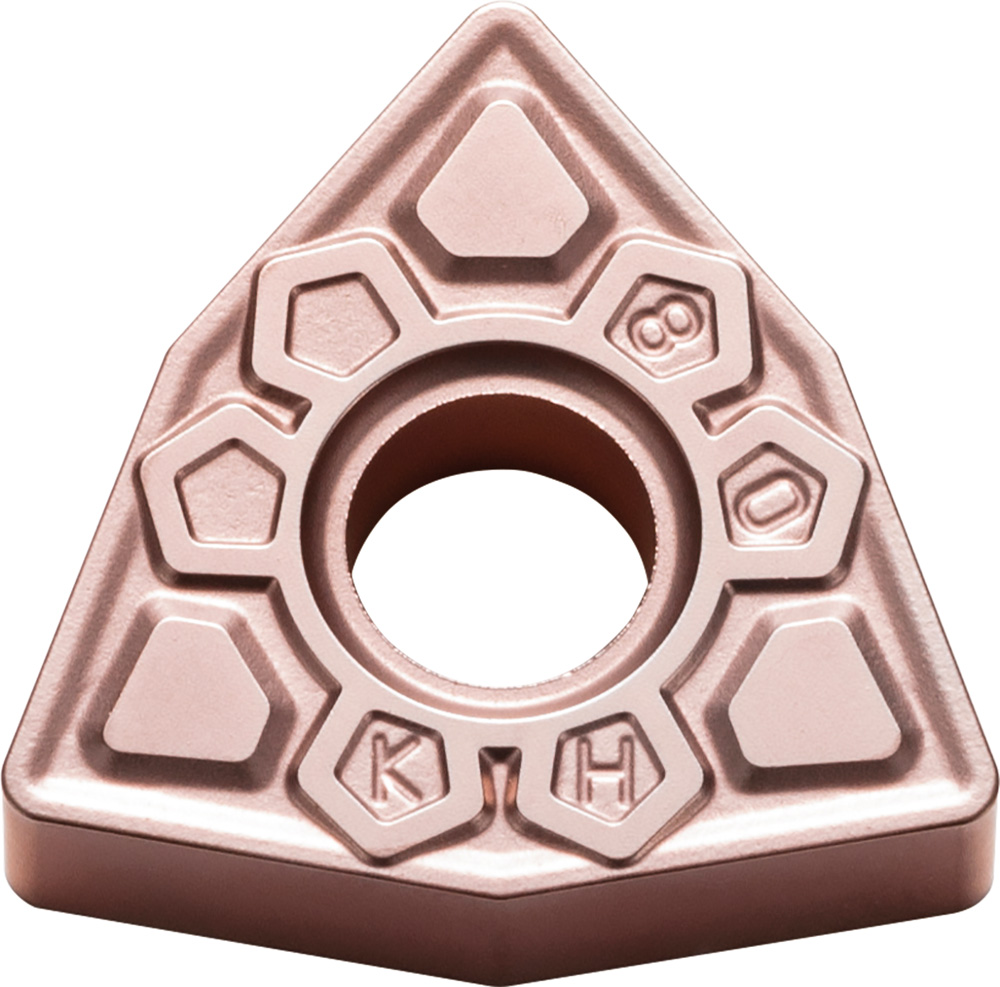

Kyocera Turning Insert WNMG432KH CA315: TMD08672

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMD08672
$19.23

Kyocera ISOI turning insert for cast iron, 1/2 in (12.70 mm) IC, 80 degree trigon shape, negative rake, 6 cutting edges, medium-roughing cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/Ti (CVD) coating. Manufacturer part number TMD08672.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/Ti
IC Size (Metric)
12.70
Corner Radius (Fractional)
1/32
Included Angle
80
ANSI Designation
WNMG432KHCA315
Insert Style
WNMG
Insert Thickness (Metric)
4.76
Insert Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Insert Size
432
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Grade
CA315
Rake
Negative
Insert Thickness (Fractional)
3/16
Corner Radius (Metric)
0.80
Number of Cutting Edges
6
Workpiece Material
Cast Iron
ISO Designation
WNMG080408KH
Cutting Range
Medium-Roughing
Usage Classification
Continuous to Light Interruption
IC Size (Fractional)
1/2
Coating Process
CVD
Chip Breaker Type
KH
Pack quantity
10
