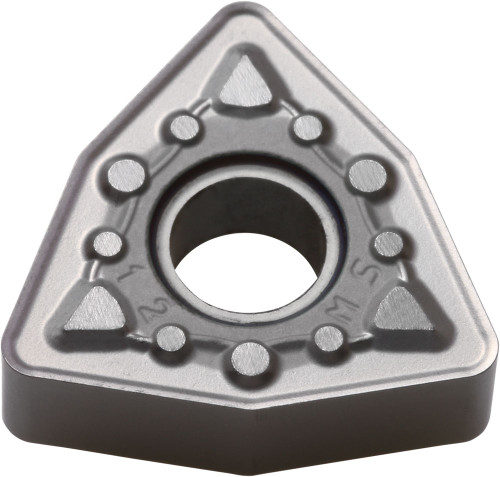

Kyocera WNMG 432MS PR005S Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLH08632
$20.42
Kyocera WNMG 432MS PR005S Grade PVD Carbide, 0 Degree, Trigon, Negative Rake Angle, Neutral Turning Insert for Continuous and Medium-Roughing in (S) Heat-Resistant Alloy

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(S) Heat-Resistant Alloy
Corner Radius
1/32 Inch
Included Angle
80 degrees
Thickness
3/16 Inch
Style
WNMG
Application
Boring, External Turning, Facing, Internal Facing
Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Size
432
Old Material Number
8858384
ANSI Part Number
WNMG432MSPR005S
ISO Part Number
WNMG080408MS
Rake
Negative
Material Group / Grade
PR005S
Corner Radius (Metric)
0.80
Number of Cutting Edges
6
Thickness (Metric)
4.76
Chipbreaker
MS
Cutting Range
Medium-Roughing
Usage Classification
Continuous
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR005S_PR015S.pdf
Kyocera WNMG 432MS PR005S Grade PVD Carbide, Indexable Turning Insert
$20.42
