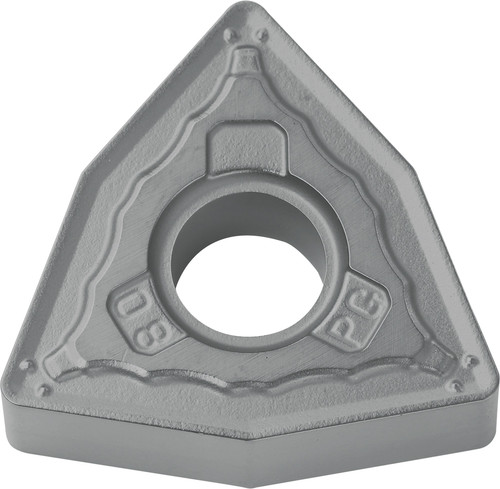

Kyocera WNMG 432PG TN610 Grade Uncoated Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSS08631
$17.95
Kyocera WNMG 432PG TN610 Grade Uncoated Cermet, 0 Degree, Trigon, Negative Rake Angle, Neutral Turning Insert for Continuous and Medium-Roughing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/32 Inch
Included Angle
80 degrees
Thickness
3/16 Inch
Style
WNMG
Application
Boring, External Turning, Facing, Internal Facing
Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Size
432
Old Material Number
8847131
ANSI Part Number
WNMG432PGTN610
ISO Part Number
WNMG080408PG
Rake
Negative
Material Group / Grade
TN610
Corner Radius (Metric)
0.80
Number of Cutting Edges
6
Thickness (Metric)
4.76
Chipbreaker
PG
Cutting Range
Medium-Roughing
Usage Classification
Continuous
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
