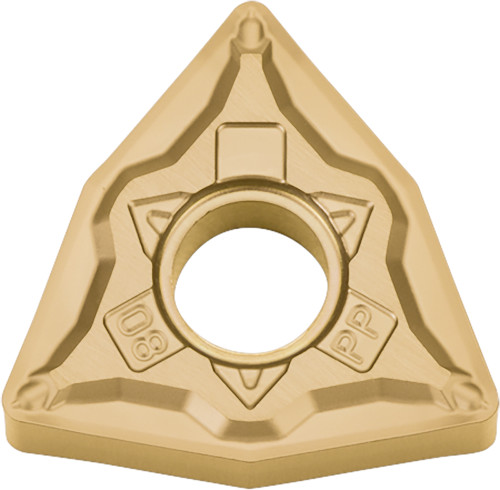

Kyocera Turning Insert WNMG432PP CA530: TAD08617

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAD08617
$19.23

Kyocera ISOI turning insert for steel, 1/2 in (12.70 mm) IC, 80 degree trigon shape, negative rake, 6 cutting edges, finishing cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TAD08617.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
1/32
Included Angle
80
ANSI Designation
WNMG432PPCA530
Insert Style
WNMG
Insert Thickness (Metric)
4.76
Insert Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Insert Size
432
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Grade
CA530
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
0.80
Number of Cutting Edges
6
Workpiece Material
Steel
ISO Designation
WNMG080408PP
Cutting Range
Finishing
Usage Classification
Continuous to Heavy Interruption
IC Size (Fractional)
1/2
Coating Process
CVD
Chip Breaker Type
PP
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/PP_PQ_Chipbreakers_Turning_Kyocera.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA5_Series_W.pdf
