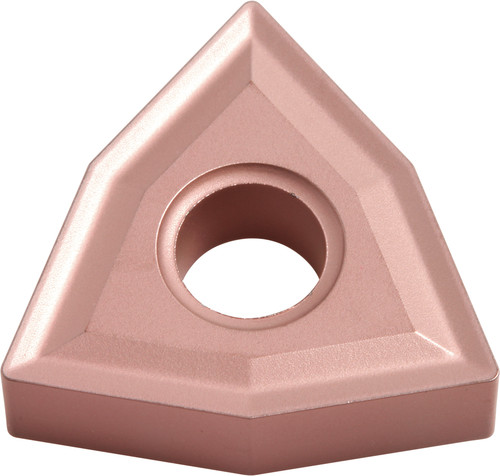

Kyocera Turning Insert WNMG433 CA310: TMC08352

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMC08352
$19.23

Kyocera ISOI turning insert for cast iron, 1/2 in (12.70 mm) IC, 80 degree trigon shape, negative rake, 6 cutting edges, roughing cutting range, screw or clamp insert holding, neutral hand. Carbide, TiCN/Al2O3/Ti (CVD) coating. Manufacturer part number TMC08352.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/Ti
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
3/64
Included Angle
80
ANSI Designation
WNMG433CA310
Insert Style
WNMG
Insert Thickness (Metric)
4.76
Insert Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Insert Size
433
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Grade
CA310
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
1.20
Number of Cutting Edges
6
Workpiece Material
Cast Iron
Cutting Range
Roughing
Usage Classification
Continuous
IC Size (Fractional)
1/2
Coating Process
CVD
ISO Designation
WNMG080412
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA3-Series_W.pdf
