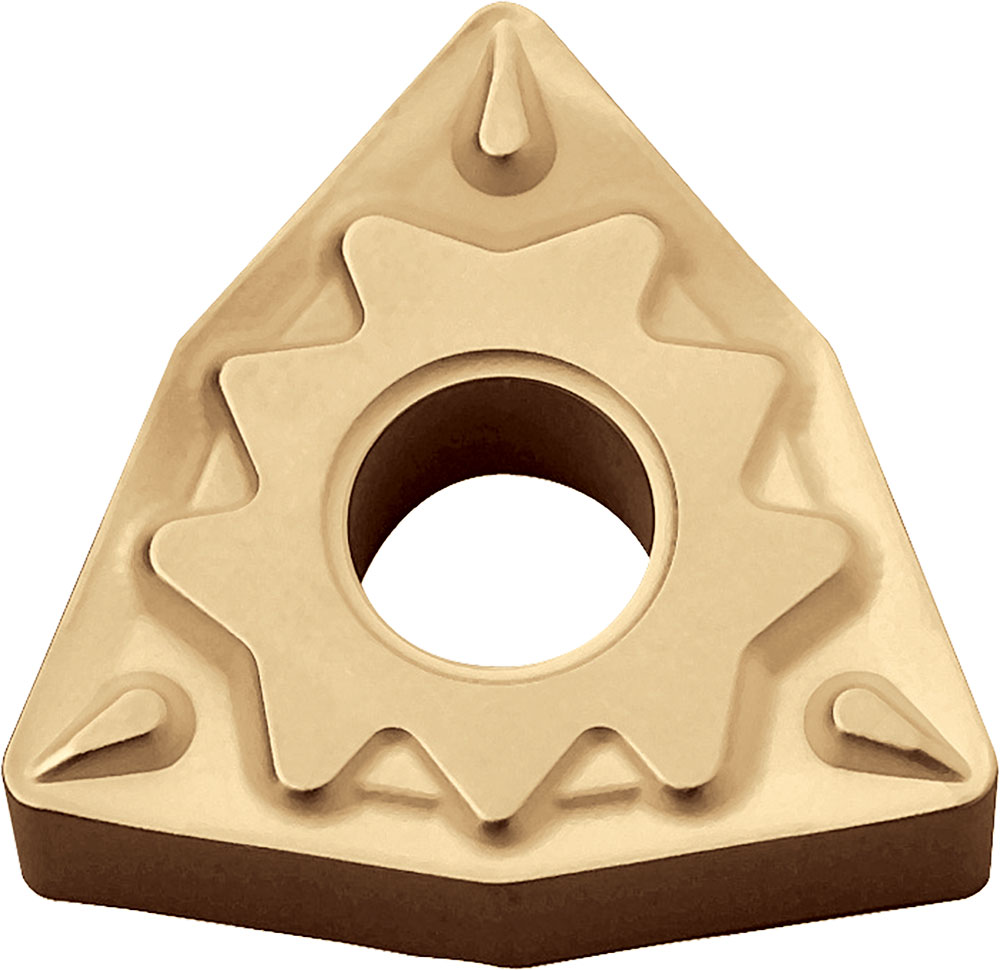

Kyocera Turning Insert WNMG433HQ PV720: TLD08602

Kyocera Turning Insert WNMG433HQ PV720, manufacturer part number TLD08602.

Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 3/64 in (1.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8862846; Rake: Negative; Number of Cutting Edges: 6; Cutting Range: Finishing-Medium; Usage Classification: Continuous to Light Interruption; Insert Size: 433; Hand Direction: Neutral; Insert Style: WNMG; Insert Shape: 80 Degree Trigon; ANSI Designation: WNMG433HQPV720; Chip Breaker Type: HQ; ISO Designation: WNMG080412HQ; Included Angle: 80 degrees; Machining Operations: Boring, External Turning, Facing, Internal Facing; Insert Grade: PV720; Workpiece Material: Steel; Coating Process: PVD.

Material: Cermet. Coating/Finish: TiCN (MEGACOAT NANO). Series: ISOI. Unit of measure: Inch.
