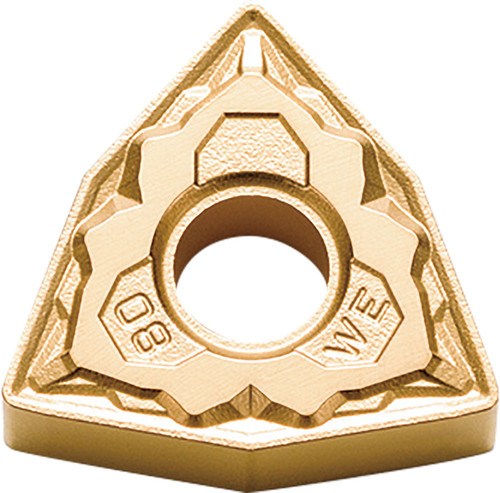

Kyocera Turning Insert WNMG433WE PV710: TLF09112

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLF09112
$19.00

Kyocera ISOI turning insert for steel, 1/2 in (12.70 mm) IC, 80 degree trigon shape, negative rake, 6 cutting edges, finishing-medium cutting range, screw or clamp insert holding, neutral hand. Cermet, TiCN (PVD) coating. Manufacturer part number TLF09112.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
TiCN
Insert Thickness (Fractional)
3/16
Corner Radius (Fractional)
3/64
Included Angle
80
ANSI Designation
WNMG433WEPV710
Insert Style
WNMG
Insert Thickness (Metric)
4.76
Insert Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Insert Size
433
Machining Operations
Boring, External Turning, Facing, Internal Facing
Insert Grade
PV710
Rake
Negative
IC Size (Metric)
12.70
Corner Radius (Metric)
1.20
Number of Cutting Edges
6
Workpiece Material
Steel
ISO Designation
WNMG080412WE
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Fractional)
1/2
Coating Process
PVD
Chip Breaker Type
WE
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/WE_WF_Chipbreaker.pdf
