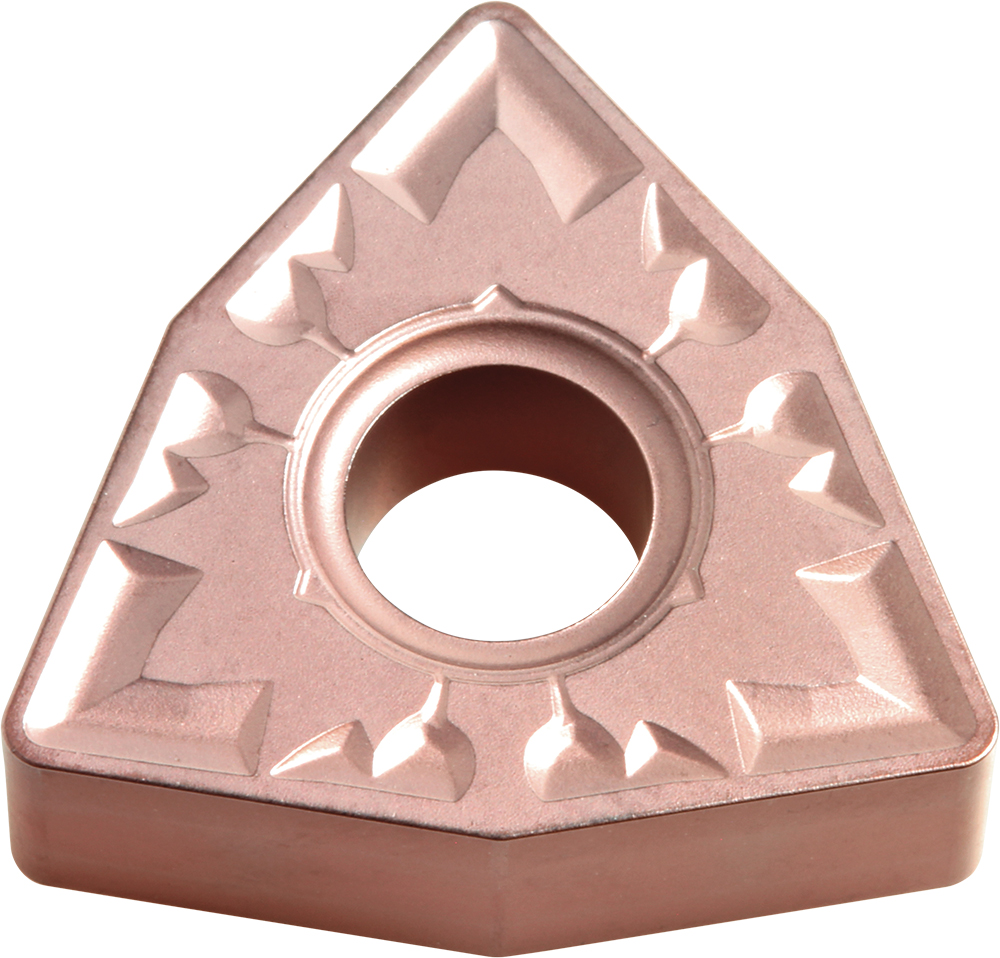

Kyocera Turning Insert WNMG433ZS CA320: TME08621

Kyocera Turning Insert WNMG433ZS CA320, manufacturer part number TME08621.

Specifications: IC Size: 1/2 in (12.70 mm); Insert Thickness: 3/16 in (4.76 mm); Corner Radius: 3/64 in (1.20 mm); Insert Holding Method: Screw or Clamp; Old Material Number: 8848593; Rake: Negative; Number of Cutting Edges: 6; Cutting Range: Roughing; Usage Classification: Continuous to Heavy Interruption; Insert Size: 433; Hand Direction: Neutral; Insert Style: WNMG; Insert Shape: 80 Degree Trigon; ANSI Designation: WNMG433ZSCA320; Chip Breaker Type: ZS; ISO Designation: WNMG080412ZS; Included Angle: 80 degrees; Machining Operations: Boring, External Turning, Facing, Internal Facing; Insert Grade: CA320; Workpiece Material: Cast Iron; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/Ti. Series: ISOI. Unit of measure: Inch.
