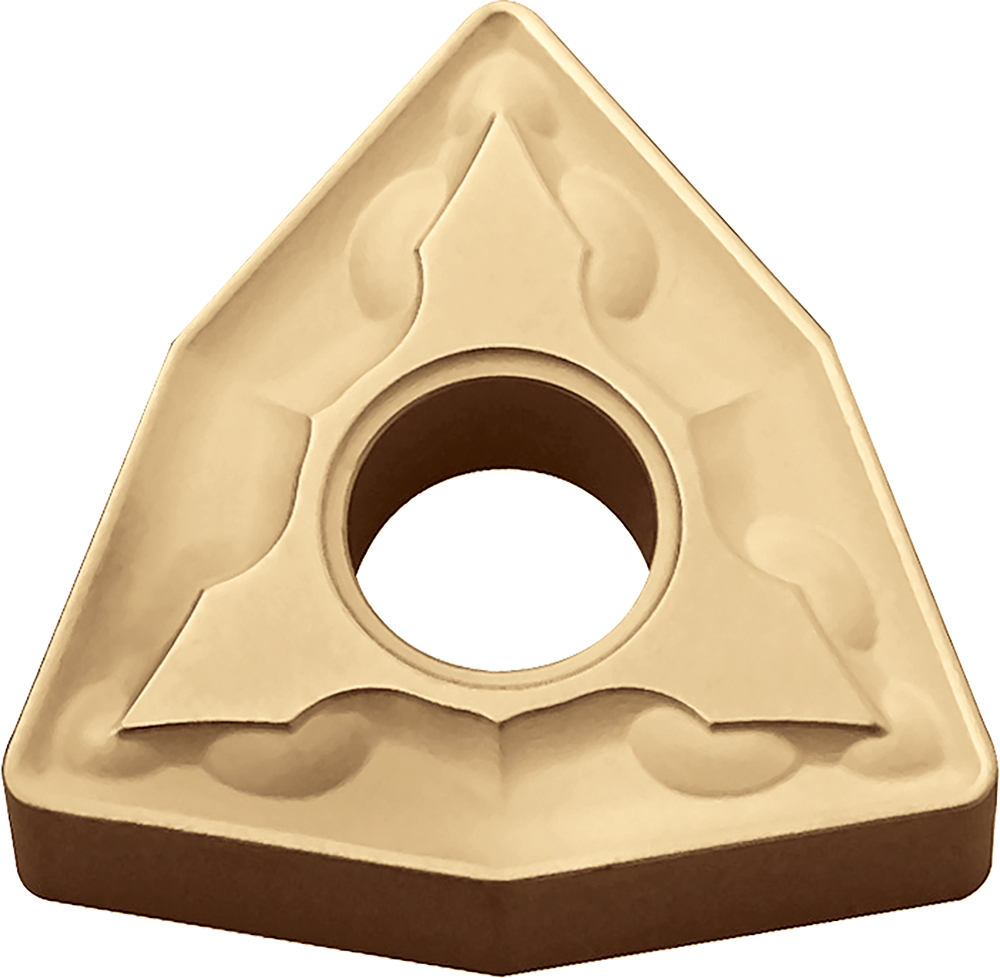

Kyocera WNMG 434PS CA515 Grade CVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TAB08553
$19.23
Kyocera WNMG 434PS CA515 Grade CVD Carbide, 0 Degree, Trigon, Negative Rake Angle, Neutral Turning Insert for Continuous and Medium-Roughing in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/16 Inch
Included Angle
80 degrees
Thickness
3/16 Inch
Style
WNMG
Application
Boring, External Turning, Facing, Internal Facing
Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Size
434
Old Material Number
8840630
ANSI Part Number
WNMG434PSCA515
ISO Part Number
WNMG080416PS
Rake
Negative
Material Group / Grade
CA515
Corner Radius (Metric)
1.60
Number of Cutting Edges
6
Thickness (Metric)
4.76
Chipbreaker
PS
Cutting Range
Medium-Roughing
Usage Classification
Continuous
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
12.70
Inscribed Circle
1/2 Inch
Pack quantity
10
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/CA5_Series_W.pdf
