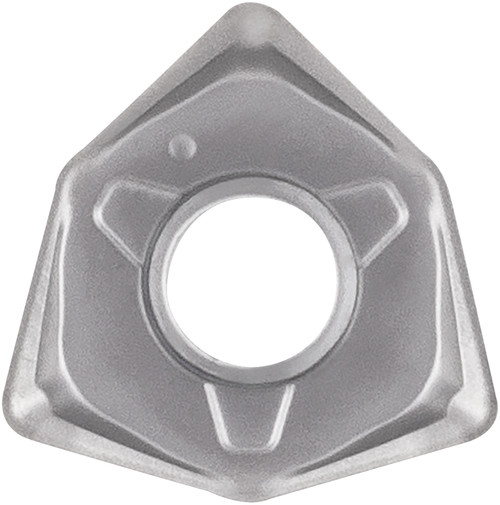

Kyocera WNMU 050408ENGH PR015S Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLJ40004
$27.39
Kyocera WNMU 050408ENGH PR015S Grade PVD Carbide, 80 Degree Trigon, Negative Rake Angle, Neutral Milling insert for Roughing in (H) Hardened Materials and n/a

Specifications

Series
MFWN
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(H) Hardened Materials
Corner Radius
0.80 mm
Corner Radius (Fractional)
1/32
Grade
PR015S
Inscribed Circle (Metric)
8.80
Thickness
4.20 mm
Style
WNMU
Application
Facing, Shouldering, Slotting
Thickness (Decimal)
0.17
Shape
80 Degree Trigon
Insert Holding Method
Screw
Old Material Number
8865607
ANSI Part Number
WNMU050408ENGHPR015S
ISO Part Number
WNMU050408EN-GH
Rake
Negative
Number of Cutting Edges
6
Insert Size
050408
Chipbreaker
EN-GH
Cutting Range
Roughing
Insert Included Angle (Degree)
80 degrees
Inscribed Circle (Decimal)
0.35
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFWN_M-Six.pdf
Kyocera WNMU 050408ENGH PR015S Grade PVD Carbide, Indexable Milling Insert
$27.39
