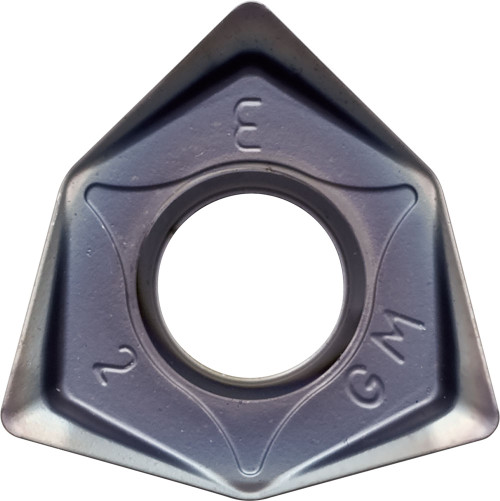

Kyocera WNMU 080608ENGM PR1535 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC09310
$35.87
Kyocera WNMU 080608ENGM PR1535 Grade PVD Carbide, Trigon, Negative Rake Angle, Neutral Milling Insert for Roughing in (M) Austenitic Stainless Steel, (M) Precipitation Hardened Stainless Steel, (S) Titanium Alloy and (P) Free-Cutting Steel, (P) Carbon/Alloy Steel, (M) Martensitic Stainless Steel, (S) Heat-Resistant Alloy

Specifications

Series
MFWN
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Austenitic Stainless Steel|(M) Precipitation Hardened Stainless Steel|(S) Titanium Alloy
Corner Radius
0.80 mm
Corner Radius (Fractional)
1/32
Grade
PR1535
Inscribed Circle (Metric)
14.02
Thickness
6.65 mm
Style
WNMU
Application
Facing, Shouldering, Slotting
Thickness (Decimal)
0.26
Shape
80 Degree Trigon
Insert Holding Method
Screw
Old Material Number
8838168
ANSI Part Number
WNMU080608ENGMPR1535
ISO Part Number
WNMU080608EN-GM
Rake
Negative
Number of Cutting Edges
6
Insert Size
080608
Chipbreaker
EN-GM
Cutting Range
Roughing
Insert Included Angle (Degree)
80 degrees
Inscribed Circle (Decimal)
0.55
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFWN_M-Six.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
