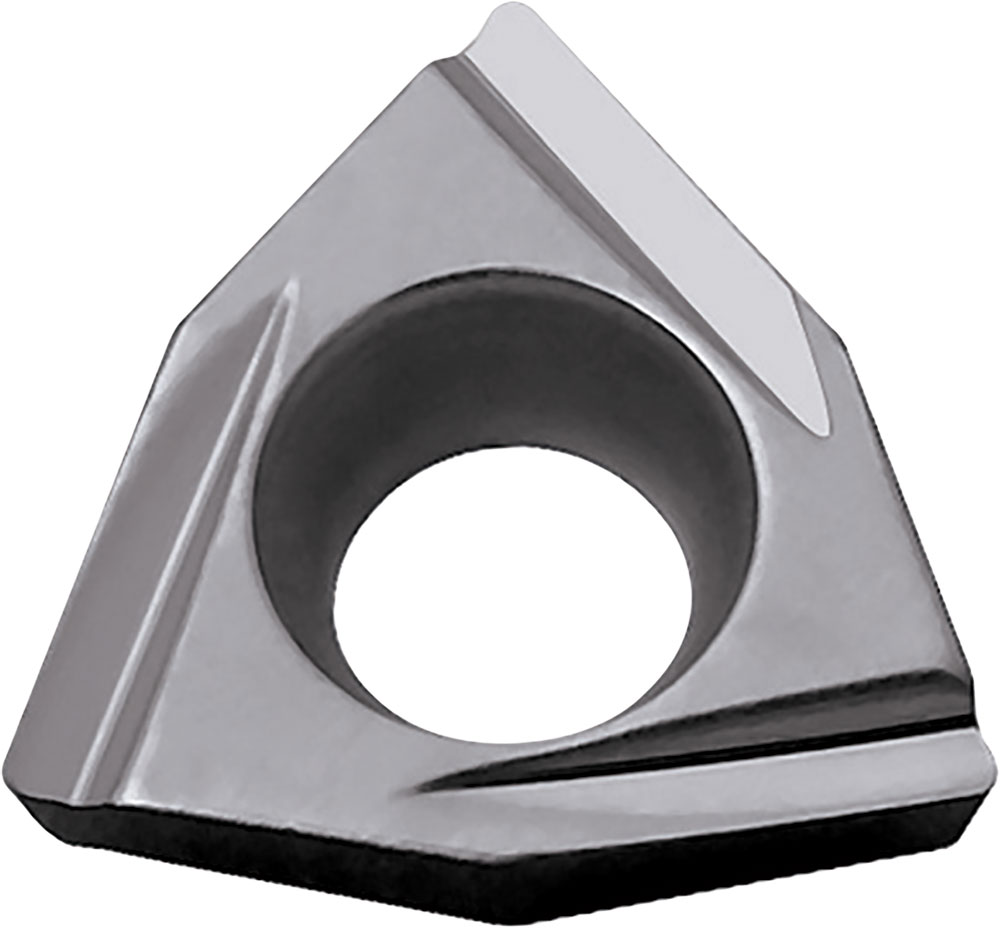

Kyocera WPGT 322LY KW10 Grade Uncoated Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE00637
$37.14
Kyocera WPGT 322LY KW10 Grade Uncoated Carbide, 11 Degree, Trigon, Positive Rake Angle, Left-Hand Turning Insert for Light Interruption and Finishing-Medium in (N) Non-Ferrous Metals, (S) Titanium Alloy and (K) Gray Cast Iron

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Left-Hand
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials|(S) Titanium Alloy
Corner Radius
1/32 Inch
Included Angle
80 degrees
Thickness
1/8 Inch
Style
WPGT
Application
Boring
Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Size
322
Old Material Number
8816530
ANSI Part Number
WPGT322LYKW10
ISO Part Number
WPGT160308L-Y
Rake
Positive
Material Group / Grade
KW10
Corner Radius (Metric)
0.80
Number of Cutting Edges
3
Thickness (Metric)
3.18
Chipbreaker
Y
Cutting Range
Finishing-Medium
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
Kyocera WPGT 322LY KW10 Grade Uncoated Carbide, Indexable Turning Insert
$37.14
