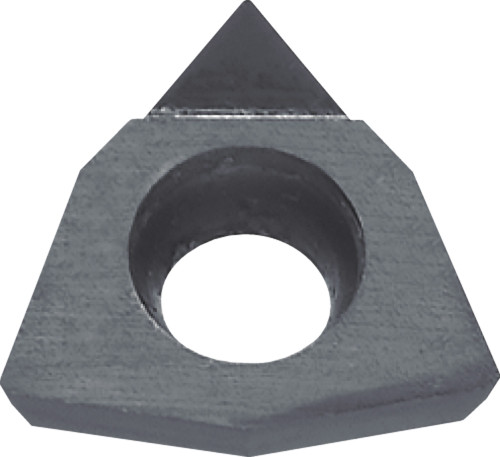

Kyocera WPMT 21505NE KPD001 Grade PCD, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBR07401
$249.32
Kyocera WPMT 21505NE KPD001 Grade PCD, 11 Degree, Trigon, Positive Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (N) Non-Ferrous Metals, (S) Titanium Alloy

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
PCD
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials|(S) Titanium Alloy
Included Angle
80 degrees
Thickness
3/32 Inch
Style
WPMT
Application
Boring
Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Size
21505
Old Material Number
8831037
ANSI Part Number
WPMT21505NEKPD001
ISO Part Number
WPMT110202NE
Rake
Positive
Material Group / Grade
KPD001
Corner Radius (Metric)
0.20
Number of Cutting Edges
1
Thickness (Metric)
2.38
Cutting Range
Finishing-Medium
Usage Classification
Continuous
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
6.35
Inscribed Circle
1/4 Inch
Kyocera WPMT 21505NE KPD001 Grade PCD, Indexable Turning Insert
$249.32
