Kyocera Turning Insert WPMT2151HQ CCX: TMJ40128

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMJ40128
$26.50

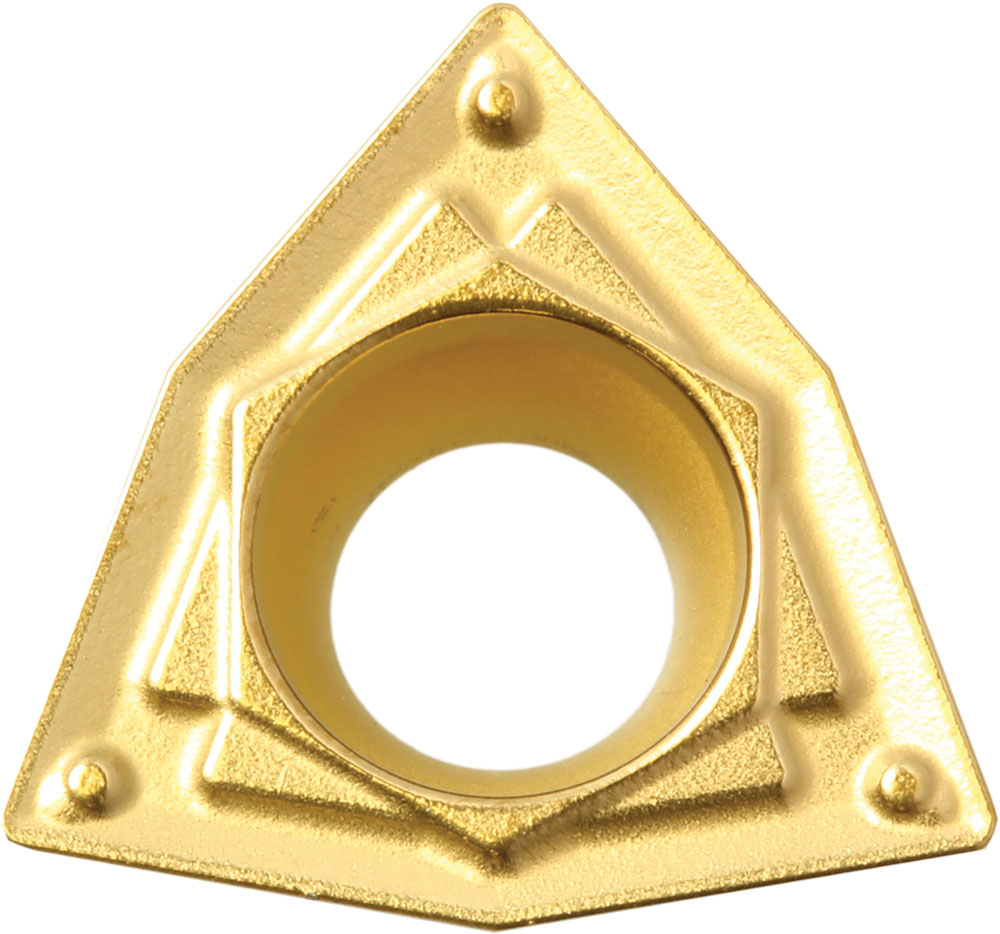

Kyocera ISOI turning insert for steel, 1/4 in (6.35 mm) IC, 80 degree trigon shape, positive rake, 3 cutting edges, finishing-medium cutting range, screw or clamp insert holding, neutral hand. Cermet, TiCN/Al2O3/TiN (CVD) coating. Manufacturer part number TMJ40128.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Cermet
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Fractional)
3/32
Corner Radius (Fractional)
1/64
Included Angle
80
ANSI Designation
WPMT2151HQCCX
Insert Style
WPMT
Insert Thickness (Metric)
2.38
Insert Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Insert Size
2151
Secondary Workpiece Material
Cast Iron
Machining Operations
Boring
Insert Grade
CCX
Rake
Positive
IC Size (Metric)
6.35
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Workpiece Material
Steel
ISO Designation
WPMT110204HQ
Cutting Range
Finishing-Medium
Usage Classification
Continuous
IC Size (Fractional)
1/4
Coating Process
CVD
Chip Breaker Type
HQ
Pack quantity
10
