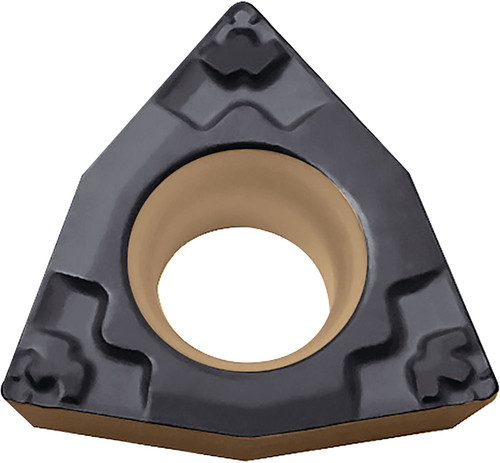

Kyocera Turning Insert WPMT321GP CA115P: TML00469

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TML00469
$32.13

Kyocera Turning Insert WPMT321GP CA115P, manufacturer part number TML00469.

Specifications: IC Size: 3/8 in (9.525 mm); Insert Thickness: 1/8 in (3.18 mm); Corner Radius: 1/64 in (0.40 mm); Insert Holding Method: Screw or Clamp; Rake: Positive; Number of Cutting Edges: 3; Cutting Range: Finishing; Usage Classification: Continuous to Light Interruption; Insert Size: 321; Hand Direction: Neutral; Insert Style: WPMT; Insert Shape: 80 Degree Trigon; ANSI Designation: WPMT321GPCA115P; Chip Breaker Type: GP; ISO Designation: WPMT160304GP; Included Angle: 80 degrees; Machining Operations: Boring; Insert Grade: CA115P; Workpiece Material: Steel; Coating Process: CVD.

Material: Carbide. Coating/Finish: TiCN/Al2O3/TiN. Series: ISOI. Unit of measure: Inch.

Specifications

Series
ISOI
Unit of Measure
Inch
Hand Direction
Neutral
Material
Carbide
Coating/Finish
TiCN/Al2O3/TiN
Insert Thickness (Metric)
3.18
Corner Radius (Fractional)
1/64
Included Angle
80
ANSI Designation
WPMT321GPCA115P
Insert Style
WPMT
Machining Operations
Boring
Insert Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Insert Size
321
Insert Grade
CA115P
Workpiece Material
Steel
Rake
Positive
Insert Thickness (Fractional)
1/8
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Coating Process
CVD
IC Size (Fractional)
3/8
Cutting Range
Finishing
Usage Classification
Continuous to Light Interruption
IC Size (Metric)
9.525
Chip Breaker Type
GP
ISO Designation
WPMT160304GP
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/CA115P_CA125P_CVD_Coated_Carbide_for_Steel.pdf
