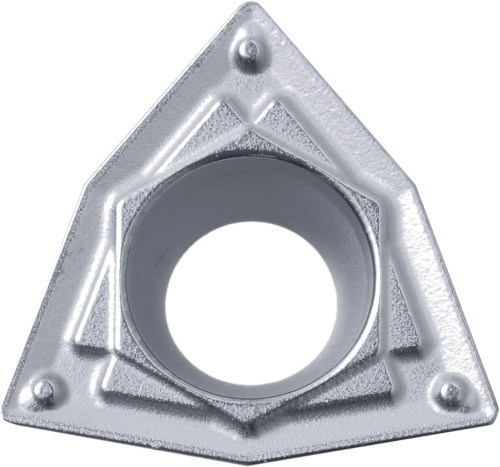

Kyocera WPMT 321HQ TN60 Grade Uncoated Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSJ03880
$18.94
Kyocera WPMT 321HQ TN60 Grade Uncoated Cermet, 11 Degree, Trigon, Positive Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/64 Inch
Included Angle
80 degrees
Thickness
1/8 Inch
Style
WPMT
Application
Boring
Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Size
321
Old Material Number
8804158
ANSI Part Number
WPMT321HQTN60
ISO Part Number
WPMT160304HQ
Rake
Positive
Material Group / Grade
TN60
Corner Radius (Metric)
0.40
Number of Cutting Edges
3
Thickness (Metric)
3.18
Chipbreaker
HQ
Cutting Range
Finishing-Medium
Usage Classification
Continuous
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
Kyocera WPMT 321HQ TN60 Grade Uncoated Cermet, Indexable Turning Insert
$18.94
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
