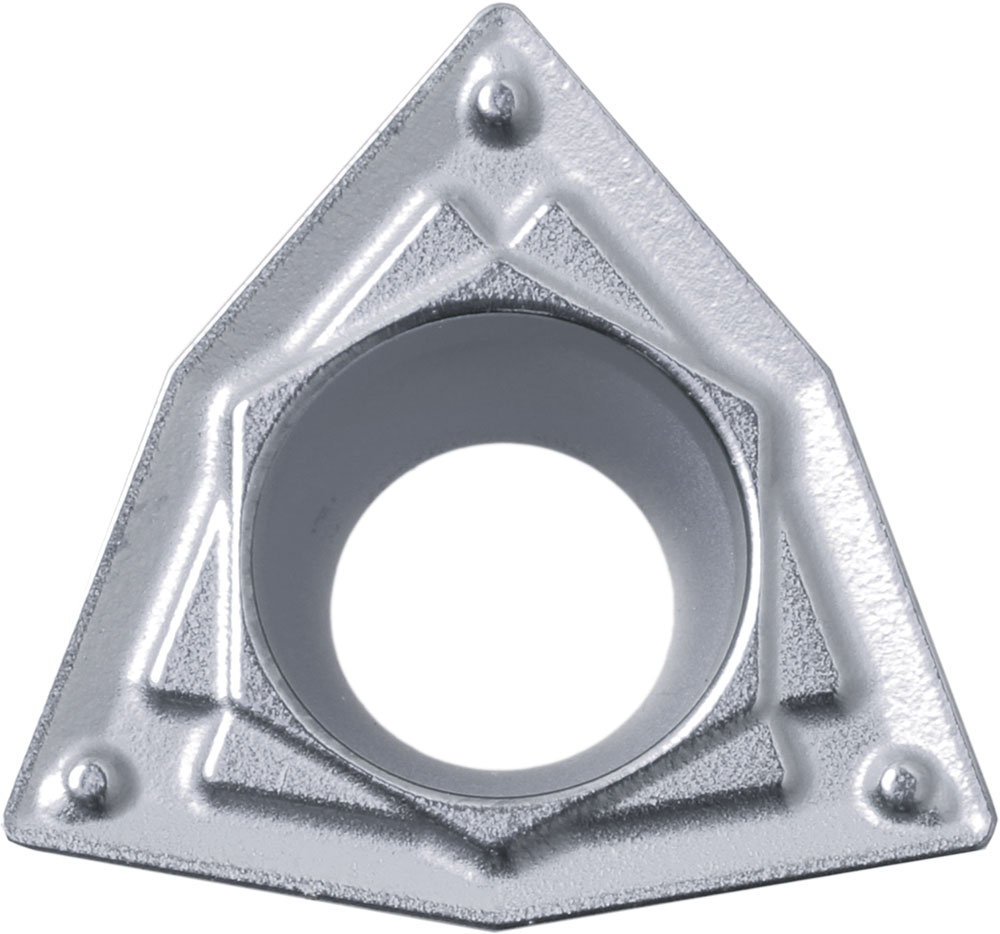

Kyocera WPMT 322HQ PR1725 Grade PVD Carbide, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLM40214
$28.13
Kyocera WPMT322HQ PR1725 Grade PVD Carbide, 11 Degree, Trigon, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Finishing-Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Fractional
Cutting Direction
Neutral
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Corner Radius
1/32 Inch
Included Angle
80 degrees
Thickness
1/8 Inch
Style
WPMT
Application
Boring
Shape
80 Degree Trigon
Insert Holding Method
Screw or Clamp
Size
322
Old Material Number
8865309
ANSI Part Number
WPMT322HQPR1725
ISO Part Number
WPMT160308HQ
Rake
Positive
Material Group / Grade
PR1725
Corner Radius (Metric)
0.80
Number of Cutting Edges
3
Thickness (Metric)
3.18
Chipbreaker
HQ
Cutting Range
Finishing-Medium
Usage Classification
Light Interruption
Insert Included Angle
80 degrees
Inscribed Circle (Metric)
9.53
Inscribed Circle
3/8 Inch
Pack quantity
10
