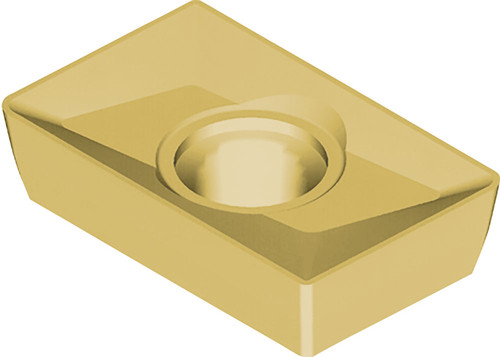

Kyocera XPMT 15T331 CA6535 Grade CVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-8858931
$30.76
Kyocera XPMT 15T331 CA6535 Grade CVD Carbide, Indexable Milling Insert, Parallelogram, Rake Angle, Neutral Milling Insert for Roughing in (M) Martensitic Stainless Steel, (S) Heat-Resistant Alloy

Specifications

Series
OTMM
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(M) Martensitic Stainless Steel|(S) Heat-Resistant Alloy
Corner Radius
3.10 mm
Grade
CA6535
Inscribed Circle (Metric)
9.53
Thickness
3.97 mm
Style
XPMT
Application
Chamfering, Countersinking, Facing, Shouldering, Slotting
Thickness (Fractional)
5/32
Shape
Parallelogram
Insert Holding Method
Screw
Insert Length (Decimal)
0.61
Insert Length (Metric)
15.42
Old Material Number
8858931
ANSI Part Number
XPMT15T331CA6535
ISO Part Number
XPMT15T331CA6535
Rake
Positive
Number of Cutting Edges
2
Insert Size
15T331
Cutting Range
Roughing
Corner Radius (Decimal)
0.12
Inscribed Circle (Fractional)
3/8
Pack quantity
10
Kyocera XPMT 15T331 CA6535 Grade CVD Carbide, Indexable Milling Insert
$30.76
