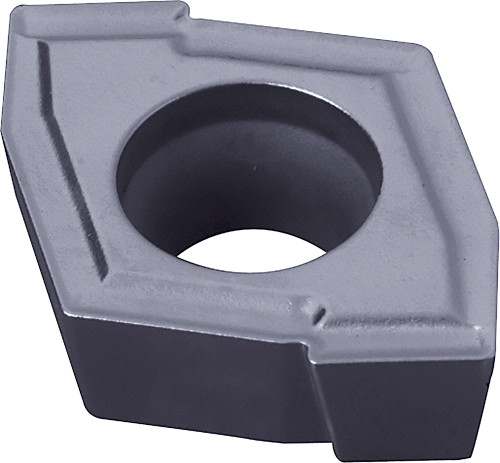

Kyocera ZCMT 06T204 PR1225 Grade PVD Carbide, Indexable Drilling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKB09471
$28.60
Kyocera ZCMT 06T204 PR1225 Grade PVD Carbide, Right-Hand Drilling Insert for (M) Stainless Steel and (P) Carbon/Alloy Steel (DRZ Magic Drill)

Specifications

Series
DRZ
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel
Type
Magic Drill
Corner Radius
0.40 mm
Corner Radius (Fractional)
1/64
Grade
PR1225
Thickness
2.80 mm
Style
ZCMT
Application
Drilling
Thickness (Decimal)
0.11
Shape
Irregular
Insert Holding Method
Screw
Insert Length (Decimal)
0.28
Insert Length (Metric)
7
Size
06T204
Old Material Number
8832323
ANSI Part Number
ZCMT06T204PR1225
ISO Part Number
ZCMT06T204
Rake
Positive
Number of Cutting Edges
4
Pack quantity
10
Kyocera ZCMT 06T204 PR1225 Grade PVD Carbide, Indexable Drilling Insert
$28.60
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
