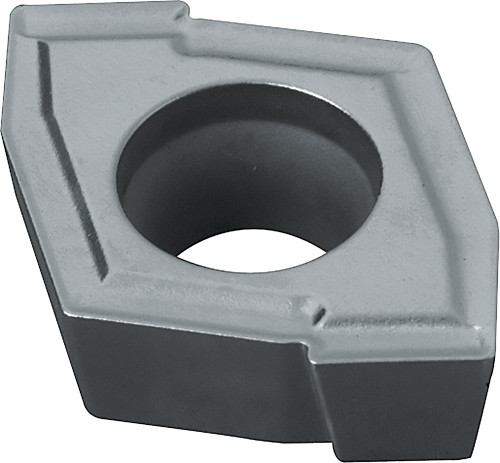

Kyocera Drill Insert ZCMT080304 KW10: TWE05010

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE05010
$23.38

Kyocera DRZ drill insert for non-ferrous metals, irregular shape, positive rake, 4 cutting edges, screw insert holding, right hand. Carbide, uncoated. Manufacturer part number TWE05010.

Specifications

Series
DRZ
Unit of Measure
Metric
Hand Direction
Right
Material
Carbide
Coating/Finish
Uncoated
ANSI Designation
ZCMT080304KW10
ISO Designation
ZCMT080304
Corner Radius (Metric)
0.40
Insert Thickness (Fractional)
1/8
Insert Thickness (Metric)
3.18
Corner Radius (Fractional)
1/64
Insert Style
ZCMT
Machining Operations
Drilling
Insert Shape
Irregular
Insert Holding Method
Screw
Insert Length (Decimal)
0.3819
Insert Length (Metric)
9.70
Insert Size
080304
Insert Grade
KW10
Workpiece Material
Non-Ferrous
Rake
Positive
Number of Cutting Edges
4
Pack quantity
10
