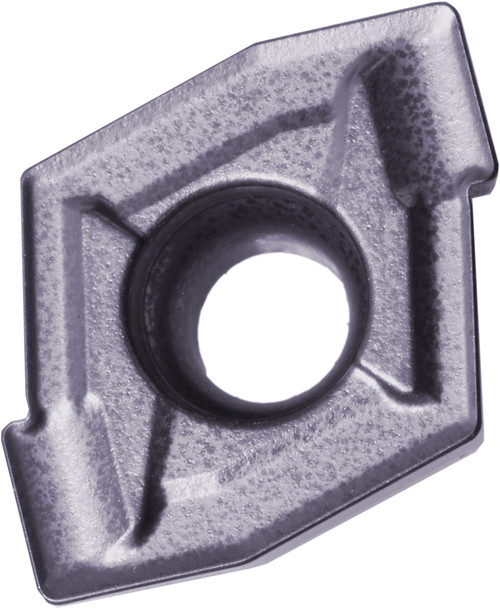

Kyocera ZCMT 12T304SP PR1225 Grade PVD Carbide, Indexable Drilling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKB09487
$36.29
Kyocera ZCMT 12T304SP PR1225 Grade PVD Carbide, Right-Hand Drilling Insert for (M) Stainless Steel and (P) Carbon/Alloy Steel (DRZ Magic Drill)

Specifications

Series
DRZ
Unit of Measure
Fractional
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Stainless Steel
Type
Magic Drill
Corner Radius (Metric)
0.40
Grade
PR1225
Thickness (Metric)
3.97
Thickness
5/32 Inch
Style
ZCMT
Application
Drilling
Chip Breaker Type
SP
Shape
Irregular
Insert Holding Method
Screw
Insert Length (Decimal)
0.56
Insert Length (Metric)
14.30
Size
12T304
Old Material Number
8832338
ANSI Part Number
ZCMT12T304SPPR1225
ISO Part Number
ZCMT12T304SP
Rake
Positive
Number of Cutting Edges
4
Pack quantity
10
Kyocera ZCMT 12T304SP PR1225 Grade PVD Carbide, Indexable Drilling Insert
$36.29
