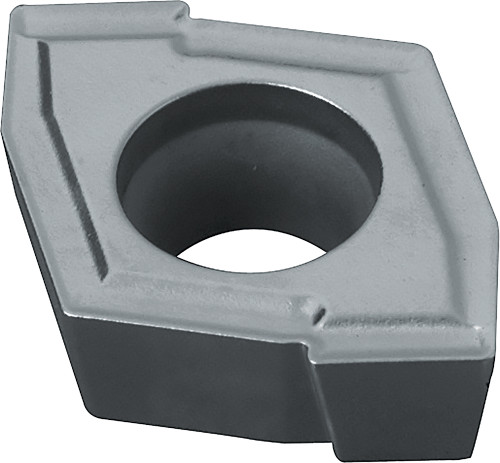

Kyocera ZCMT 12T306 KW10 Grade Uncoated Carbide, Indexable Drilling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE05030
$28.23
Kyocera ZCMT 12T306 KW10 Grade Uncoated Carbide, Right-Hand Drilling Insert for (N) Non-Ferrous Metals (DRZ Magic Drill)

Specifications

Series
DRZ
Unit of Measure
Fractional
Cutting Direction
Right
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials
Type
Magic Drill
Corner Radius (Metric)
0.60
Grade
KW10
Thickness (Metric)
3.97
Thickness
5/32 Inch
Style
ZCMT
Application
Drilling
Shape
Irregular
Insert Holding Method
Screw
Insert Length (Decimal)
0.56
Insert Length (Metric)
14.30
Size
12T306
Old Material Number
8804270
ANSI Part Number
ZCMT12T306KW10
ISO Part Number
ZCMT12T306
Rake
Positive
Number of Cutting Edges
4
Corner Radius (Decimal)
0.02
Pack quantity
10
Kyocera ZCMT 12T306 KW10 Grade Uncoated Carbide, Indexable Drilling Insert
$28.23
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
