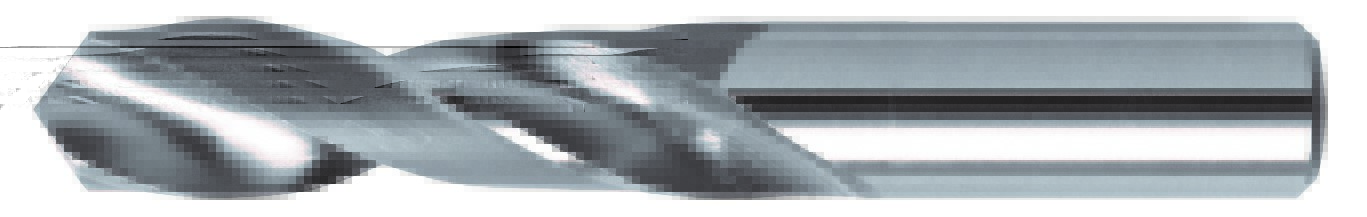

L561 Screw Machine Length HSS Drill - 1 7/16"

Nachi

No reviews yet Write a Review
SKU:
NAC-1266161
$397.43

Nachi Drill, manufacturer part number 1266161.

Specifications: Cutting Diameter: 1-7/16 in (1.4375 in); Flute Length: 4-3/4 in; Overall Length: 7-3/8 in; Shank Diameter: 1-7/16 in; Point Angle: 118 degrees; Drill Bit Type: HSS Short Length Drill Bit; Shank Type: Straight; Coolant Option: External Coolant.

Coating/Finish: Bright/Uncoated. Unit of measure: Inch.

Specifications

Coating/Finish
Bright/Uncoated
Coolant Through
No
Cutting Direction
Right
Cutting Diameter (Fractional)
1-7/16
Diameter Fractional Equivalent (Decimal)
1.44
Drill Bit Type
HSS Short Length Drill Bit
Drill Suitable for Drilling in
Stainless Steel, Carbon Steel, Alloy Steel, Aluminum, Cast Irons
Flute Length (Fractional)
4-3/4
Flute Type
Conventional Spiral
Material
HSS
Number of Flutes
2
Overall Length (Fractional)
7-3/8
Point Angle
118 degrees
Point Type
Conventional
Series
L561
Shank Diameter (Decimal)
1.44
Shank Type
Straight
Unit of Measure
Inch
Coolant Option
External Coolant
Cutting Diameter (Decimal)
1.4375
Shank Diameter (Fractional)
1-7/16
Size System
Fractional
L561 Screw Machine Length HSS Drill - 1 7/16"
HSS SML DRILL-BRIGHT View full description
$397.43
