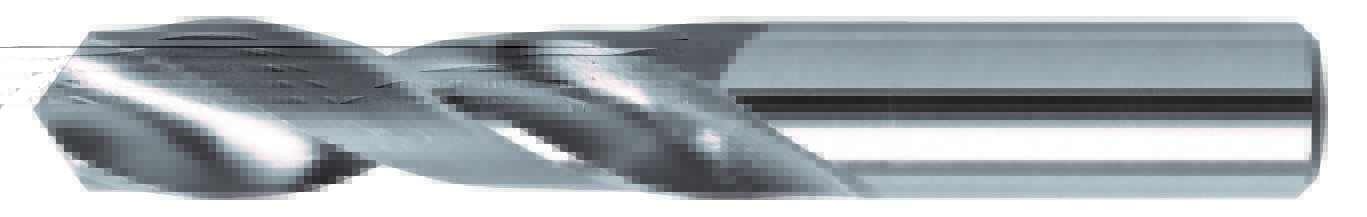

L561 Screw Machine Length HSS Drill - 49/64"

Nachi

No reviews yet Write a Review
SKU:
NAC-1265944
$114.18

Nachi Drill, manufacturer part number 1265944.

Specifications: Cutting Diameter: 49/64 in (0.7656 in); Flute Length: 3-1/4 in; Overall Length: 5-1/8 in; Shank Diameter: 49/64 in; Point Angle: 118 degrees; Drill Bit Type: HSS Short Length Drill Bit; Shank Type: Straight; Coolant Option: External Coolant.

Coating/Finish: Bright/Uncoated. Unit of measure: Inch.

Specifications

Coating/Finish
Bright/Uncoated
Coolant Through
No
Cutting Direction
Right
Cutting Diameter (Decimal)
0.7656
Cutting Diameter (Fractional)
49/64
Diameter Fractional Equivalent (Decimal)
0.77
Drill Bit Type
HSS Short Length Drill Bit
Drill Suitable for Drilling in
Stainless Steel, Carbon Steel, Alloy Steel, Aluminum, Cast Irons
Flute Length (Fractional)
3-1/4
Flute Type
Conventional Spiral
Material
HSS
Number of Flutes
2
Overall Length (Fractional)
5-1/8
Point Angle
118 degrees
Point Type
Conventional
Series
L561
Shank Diameter (Decimal)
0.77
Shank Type
Straight
Unit of Measure
Inch
Coolant Option
External Coolant
Shank Diameter (Fractional)
49/64
Size System
Fractional
L561 Screw Machine Length HSS Drill - 49/64"
HSS SML DRILL-BRIGHT View full description
$114.18
