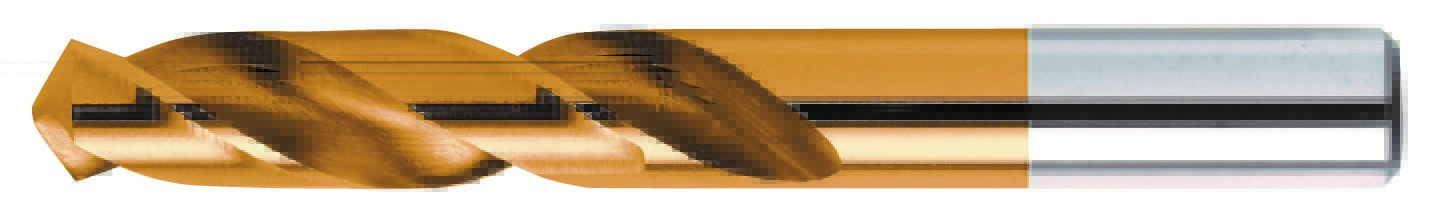

Nachi L561P Screw Machine Drill: 1/2" Dia, 2-1/4" Flute Length, 3-3/4" OAL, 118° Point, External Coolant, TiN, HSS, 1087904

Nachi

No reviews yet Write a Review
SKU:
NAC-1087904
$9.32

Nachi L561P drill for steel, 2 flutes, 118 degree point, spiral flutes, straight shank, external coolant. HSS, TiN coating. Manufacturer part number 1087904.

Specifications

Coating/Finish
TiN
Hand Direction
Right
Cutting Diameter (Fractional)
1/2
Secondary Workpiece Material
Cast Iron
Drill Bit Type
HSS Short Length Drill Bit
Workpiece Material
Steel
Flute Length (Fractional)
2-1/4
Flute Type
Spiral
Material
HSS
Number of Flutes
2
Overall Length (Fractional)
3-3/4
Point Angle
118 degrees
Point Type
Conventional
Series
L561P
Shank Diameter (Decimal)
0.5000
Shank Type
Straight
Unit of Measure
Inch
Pack quantity
5
Coolant Option
External Coolant
Cutting Diameter (Decimal)
0.5000
Shank Diameter (Fractional)
1/2
Size System
Fractional
Nachi L561P Screw Machine Drill: 1/2" Dia, 2-1/4" Flute Length, 3-3/4" OAL, 118° Point, External Coolant, TiN, HSS, 1087904
