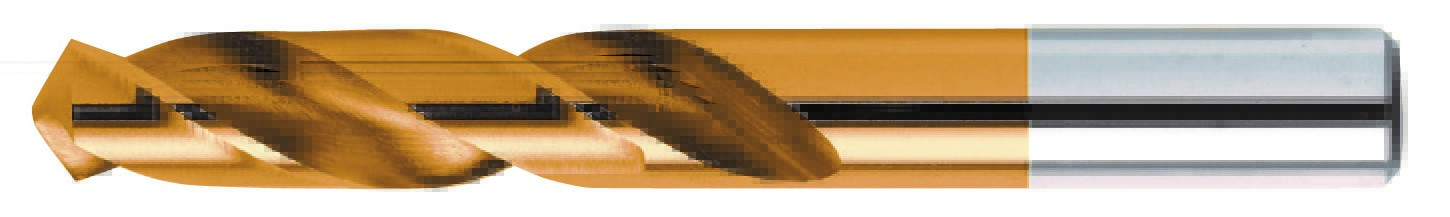

L561P Screw Machine Length HSS TiN Coated Drill - #12

Nachi

No reviews yet Write a Review
SKU:
NAC-1021303
$1.01

Nachi Drill, manufacturer part number 1021303.

Specifications: Cutting Diameter: #12 (0.1890 in); Flute Length: 1-3/16 in; Overall Length: 2-1/4 in; Shank Diameter: 0.1890 in; Point Angle: 118 degrees; Drill Bit Type: HSS Short Length Drill Bit; Shank Type: Straight; Coolant Option: External Coolant.

Unit of measure: Inch.

Specifications

Coating/Finish
TiN
Coolant Through
No
Cutting Direction
Right
Diameter Fractional Equivalent (Decimal)
0.19
Diameter Wire/Letter
#12
Drill Bit Type
HSS Short Length Drill Bit
Drill Suitable for Drilling in
Stainless Steel, Carbon Steel, Alloy Steel, Aluminum, Cast Irons
Flute Length (Fractional)
1-3/16
Flute Type
Conventional Spiral
Material
HSS
Number of Flutes
2
Overall Length (Fractional)
2-1/4
Point Angle
118 degrees
Point Type
Conventional
Series
L561P
Shank Diameter (Decimal)
0.1890
Shank Type
Straight
Unit of Measure
Inch
Pack quantity
10
Coolant Option
External Coolant
Cutting Diameter (Decimal)
0.1890
Cutting Diameter (Wire)
#12
Size System
Wire
L561P Screw Machine Length HSS TiN Coated Drill - #12
HSS SML DRILL - TIN COAT View full description
$1.01
