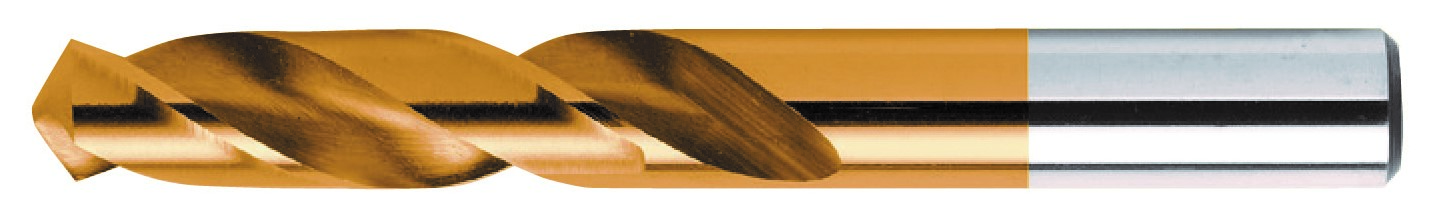

L561P Screw Machine Length HSS TiN Coated Drill - 7/16"

Nachi

No reviews yet Write a Review
SKU:
NAC-1087860
$7.31

Nachi Drill, manufacturer part number 1087860.

Specifications: Cutting Diameter: 7/16 in (0.4375 in); Flute Length: 2-1/16 in; Overall Length: 3-7/16 in; Shank Diameter: 7/16 in; Point Angle: 118 degrees; Drill Bit Type: HSS Short Length Drill Bit; Shank Type: Straight; Coolant Option: External Coolant.

Unit of measure: Inch.

Specifications

Coating/Finish
TiN
Coolant Through
No
Cutting Direction
Right
Cutting Diameter (Fractional)
7/16
Diameter Fractional Equivalent (Decimal)
0.44
Drill Bit Type
HSS Short Length Drill Bit
Drill Suitable for Drilling in
Stainless Steel, Carbon Steel, Alloy Steel, Aluminum, Cast Irons
Flute Length (Fractional)
2-1/16
Flute Type
Conventional Spiral
Material
HSS
Number of Flutes
2
Overall Length (Fractional)
3-7/16
Point Angle
118 degrees
Point Type
Conventional
Series
L561P
Shank Diameter (Decimal)
0.44
Shank Type
Straight
Unit of Measure
Inch
Pack quantity
5
Coolant Option
External Coolant
Cutting Diameter (Decimal)
0.4375
Shank Diameter (Fractional)
7/16
Size System
Fractional
L561P Screw Machine Length HSS TiN Coated Drill - 7/16"
HSS SML DRILL - TIN COAT View full description
$7.31
