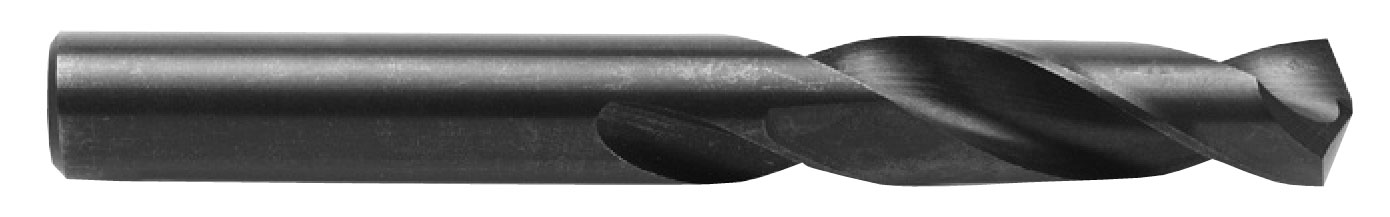

L563 Screw Machine Length HSS Drill W/ Black Oxide - 13/64"

Nachi

No reviews yet Write a Review
SKU:
NAC-1059858
$0.53

Nachi Drill, manufacturer part number 1059858.

Specifications: Cutting Diameter: 13/64 in (0.2031 in); Flute Length: 1-3/16 in; Overall Length: 2-1/4 in; Shank Diameter: 13/64 in; Point Angle: 135 degrees; Drill Bit Type: HSS Short Length Drill Bit; Shank Type: Straight; Coolant Option: External Coolant.

Unit of measure: Inch.

Specifications

Coating/Finish
Black Oxide
Coolant Through
No
Cutting Direction
Right
Cutting Diameter (Decimal)
0.2031
Cutting Diameter (Fractional)
13/64
Diameter Fractional Equivalent (Decimal)
0.21000000000000002
Drill Bit Type
HSS Short Length Drill Bit
Drill Suitable for Drilling in
Stainless Steel, Carbon Steel, Alloy Steel, Aluminum, Cast Irons
Flute Length (Fractional)
1-3/16
Flute Type
Conventional Spiral
Material
HSS
Number of Flutes
2
Overall Length (Fractional)
2-1/4
Point Angle
135 degrees
Point Type
Conventional
Series
L563
Shank Diameter (Decimal)
0.21000000000000002
Shank Type
Straight
Unit of Measure
Inch
Pack quantity
10
Coolant Option
External Coolant
Shank Diameter (Fractional)
13/64
Size System
Fractional
L563 Screw Machine Length HSS Drill W/ Black Oxide - 13/64"
HSS SML DRILL- BLK OXIDE View full description
$0.53
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
