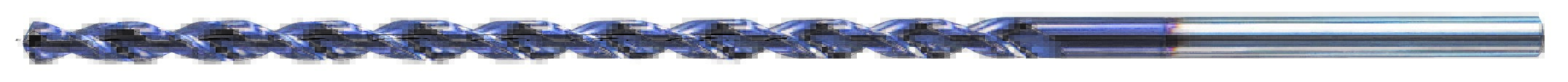

L6540P AG Power Long Parabolic Drill - 3.0mm

Nachi

No reviews yet Write a Review
SKU:
NAC-0642054
$83.43

Nachi Drill, manufacturer part number 0642054.

Specifications: Cutting Diameter: 3.00 mm (0.1181 in); Flute Length: 130.00 mm; Overall Length: 190.00 mm; Shank Diameter: 3.00 mm; Point Angle: 118 degrees; Shank Type: Straight; Coolant Option: External Coolant.

Unit of measure: Metric.

Specifications

Coating/Finish
AG (TiAlN)
Coolant Through
No
Cutting Direction
Right
Cutting Diameter (Metric)
3.00
Diameter Fractional Equivalent (Decimal)
0.12
Drill Bit Type
20XD HSS-Co Drill Bit
Drill Suitable for Drilling in
High Carbon Steel, Alloy Steel, Die Steel, up to 35HRC Hardened Steel, Cast Iron
Flute Length (Metric)
130.00
Flute Type
Conventional Spiral
Material
HSCo
Number of Flutes
2
Overall Length (Metric)
190.00
Point Angle
118 degrees
Point Type
Conventional
Series
L6540P
Shank Type
Straight
Unit of Measure
Metric
Coolant Option
External Coolant
Cutting Diameter (Decimal)
0.1181
Shank Diameter (Metric)
3.00
Size System
Metric
L6540P AG Power Long Parabolic Drill - 3.0mm
AG PWR LONG DRILL HSS-CO TIALN View full description
$83.43
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
