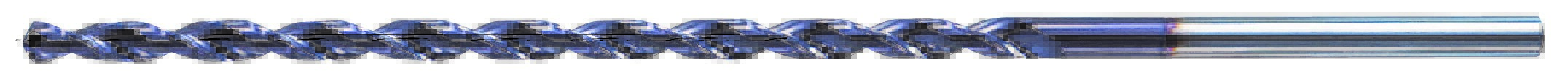

L6541P AG Power Long Parabolic Drill - 1/4"

Nachi

No reviews yet Write a Review
SKU:
NAC-1372887
$176.85

Nachi Drill, manufacturer part number 1372887.

Specifications: Cutting Diameter: 1/4 in (0.2500 in); Flute Length: 97.00 mm; Overall Length: 148.00 mm; Shank Diameter: 1/4 in; Point Angle: 118 degrees; Shank Type: Straight; Coolant Option: External Coolant.

Unit of measure: Inch.

Specifications

Coating/Finish
AG (TiAlN)
Coolant Through
No
Cutting Direction
Right
Cutting Diameter (Fractional)
1/4
Diameter Fractional Equivalent (Decimal)
0.25
Drill Bit Type
HSS-Co Long Drill Bit
Drill Suitable for Drilling in
High Carbon Steel, Alloy Steel, Die Steel, up to 35HRC Hardened Steel, Cast Iron
Flute Length (Metric)
97.00
Flute Type
Conventional Spiral
Material
HSCo
Number of Flutes
3
Overall Length (Metric)
148.00
Point Angle
118 degrees
Point Type
Conventional
Series
L6541P
Shank Diameter (Decimal)
0.25
Shank Type
Straight
Unit of Measure
Inch
Coolant Option
External Coolant
Cutting Diameter (Decimal)
0.2500
Shank Diameter (Fractional)
1/4
Size System
Fractional
L6541P AG Power Long Parabolic Drill - 1/4"
AG PWR LONG DRILL HSS-CO TIALN View full description
