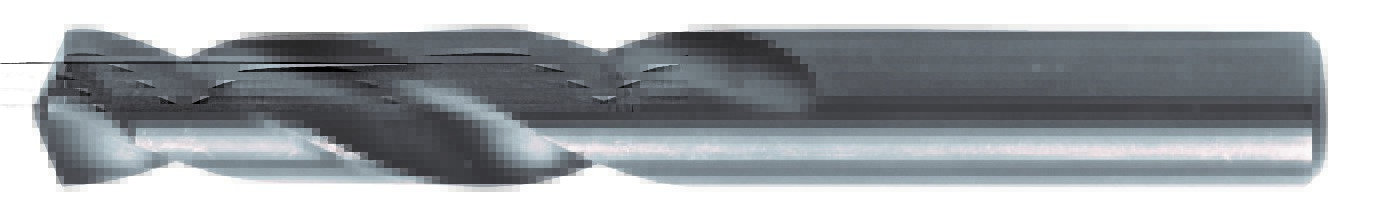

L6563 Screw Machine Length Cobalt Drill W/ Black Oxide - #4

Nachi

No reviews yet Write a Review
SKU:
NAC-1081730
$1.17

Nachi Drill, manufacturer part number 1081730.

Specifications: Cutting Diameter: #4 (0.2090 in); Flute Length: 1-1/4 in; Overall Length: 2-3/8 in; Shank Diameter: 0.2090 in; Point Angle: 135 degrees; Drill Bit Type: HSS Short Length Drill Bit; Shank Type: Straight; Coolant Option: External Coolant.

Unit of measure: Inch.

Specifications

Coating/Finish
Black Oxide
Coolant Through
No
Cutting Direction
Right
Diameter Fractional Equivalent (Decimal)
0.21000000000000002
Cutting Diameter (Wire)
#4
Drill Bit Type
HSS Short Length Drill Bit
Drill Suitable for Drilling in
Stainless Steel, Carbon Steel, Alloy Steel, Aluminum, Cast Irons
Flute Length (Fractional)
1-1/4
Flute Type
Conventional Spiral
Material
HSCo
Number of Flutes
2
Overall Length (Fractional)
2-3/8
Point Angle
135 degrees
Point Type
Conventional
Series
L6563
Shank Diameter (Decimal)
0.2090
Shank Type
Straight
Unit of Measure
Inch
Pack quantity
10
Coolant Option
External Coolant
Cutting Diameter (Decimal)
0.2090
Size System
Wire
L6563 Screw Machine Length Cobalt Drill W/ Black Oxide - #4
HSS-CO SML DRILL BLK OXIDE View full description
$1.17
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
