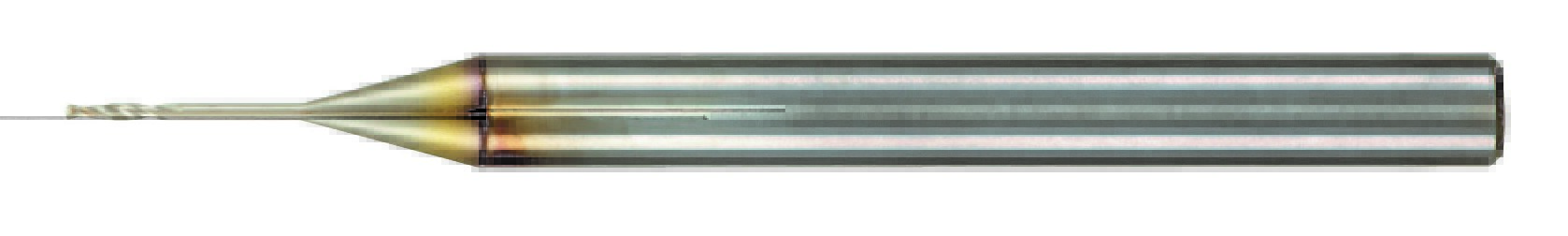

L7572P SG-ESS Stub Length Drill - 3.13mm

Nachi

No reviews yet Write a Review
SKU:
NAC-0695567
$43.03

Nachi Drill, manufacturer part number 0695567.

Specifications: Cutting Diameter: 3.13 mm (0.1232 in); Flute Length: 18.00 mm; Overall Length: 50.00 mm; Shank Diameter: 4.00 mm; Point Angle: 135 degrees; Drill Bit Type: HSS PM Short Drill Bit; Coolant Option: External Coolant; Shank Type: Straight.

Unit of measure: Metric.

Specifications

Coating/Finish
SG (TiN+TiCN)
Coolant Through
No
Cutting Direction
Right
Cutting Diameter (Metric)
3.13
Diameter Fractional Equivalent (Decimal)
0.13
Drill Bit Type
HSS PM Short Drill Bit
Drill Suitable for Drilling in
Stainless Steel, Carbon Steel, Alloy Steel, Aluminum, Cast Irons
Flute Length (Metric)
18.00
Flute Type
Conventional Spiral
Material
Powdered HSCo
Number of Flutes
2
Overall Length (Metric)
50.00
Point Angle
135 degrees
Point Type
Conventional
Series
L7572P
Shank Type
Straight
Unit of Measure
Metric
Coolant Option
External Coolant
Cutting Diameter (Decimal)
0.1232
Shank Diameter (Metric)
4.00
Size System
Metric
L7572P SG-ESS Stub Length Drill - 3.13mm
PM HSS STUB DRILL SG COATED View full description
$43.03
