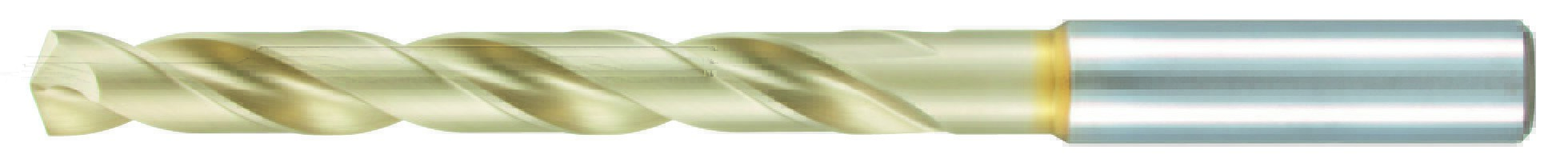

L7574P SG-ESR Jobber Length Drill - 8.4mm

Nachi

No reviews yet Write a Review
SKU:
NAC-0722462
$118.01

Nachi Drill, manufacturer part number 0722462.

Specifications: Cutting Diameter: 8.40 mm (0.3307 in); Flute Length: 75.00 mm; Overall Length: 125.00 mm; Shank Diameter: 10.00 mm; Point Angle: 135 degrees; Drill Bit Type: HSS PM Jobber Drill Bit; Coolant Option: External Coolant; Shank Type: Straight.

Unit of measure: Metric.

Specifications

Coating/Finish
SG (TiN+TiCN)
Coolant Through
No
Cutting Direction
Right
Cutting Diameter (Metric)
8.40
Diameter Fractional Equivalent (Decimal)
0.34
Drill Bit Type
HSS PM Jobber Drill Bit
Drill Suitable for Drilling in
Stainless Steel, Carbon Steel, Alloy Steel, Aluminum, Cast Irons
Flute Length (Metric)
75.00
Flute Type
Conventional Spiral
Material
Powdered HSCo
Number of Flutes
2
Overall Length (Metric)
125.00
Point Angle
135 degrees
Point Type
Conventional
Series
L7574P
Shank Diameter (Metric)
10.00
Shank Type
Straight
Unit of Measure
Metric
Coolant Option
External Coolant
Cutting Diameter (Decimal)
0.3307
Size System
Metric
L7574P SG-ESR Jobber Length Drill - 8.4mm
PM HSS JL DRILL SG COATED-FOR HI-TEMP ALLOYS View full description
$118.01
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
