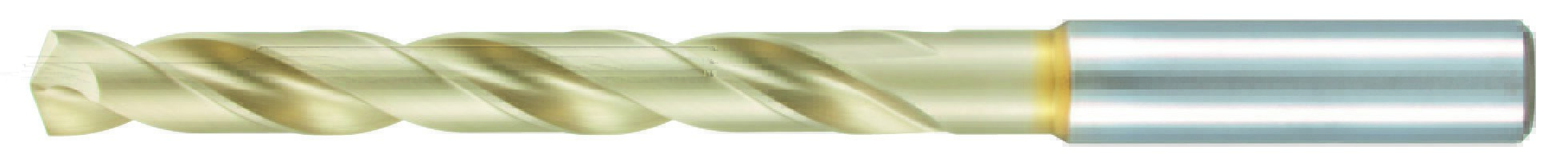

Nachi L7575P Jobber Drill: Letter R (.3390") Dia, 3-7/16" Flute Length, 5-1/4" OAL, 135° Point, External Coolant, TiN/TiCN, HSS-PM, 1464671

Nachi

No reviews yet Write a Review
SKU:
NAC-1464671
$150.84

Nachi L7575P drill for steel, stainless steel and cast iron, 2 flutes, 135 degree point, spiral flutes, straight shank, external coolant. HSS-PM, TiN/TiCN coating. Manufacturer part number 1464671.

Specifications

Coating/Finish
TiN/TiCN
Hand Direction
Right
Secondary Workpiece Material
Non-Ferrous, High-Temp Alloy
Drill Bit Type
HSS PM Jobber Drill Bit
Workpiece Material
Steel, Stainless Steel, Cast Iron
Flute Length (Fractional)
3-7/16
Flute Type
Spiral
Material
HSS-PM
Number of Flutes
2
Overall Length (Fractional)
5-1/4
Point Angle
135 degrees
Point Type
Conventional
Series
L7575P
Shank Diameter (Decimal)
0.3750
Shank Type
Straight
Unit of Measure
Inch
Coolant Option
External Coolant
Cutting Diameter (Decimal)
0.3390
Cutting Diameter (Letter)
R
Shank Diameter (Fractional)
3/8
Size System
Letter
Nachi L7575P Jobber Drill: Letter R (.3390") Dia, 3-7/16" Flute Length, 5-1/4" OAL, 135° Point, External Coolant, TiN/TiCN, HSS-PM, 1464671
$150.84
