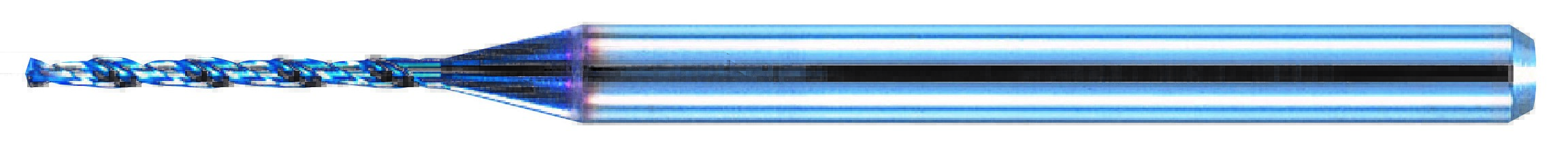

L9544 Aqua Micro Drill - 1.82mm

Nachi

No reviews yet Write a Review
SKU:
NAC-0635628
$41.37

Nachi Drill, manufacturer part number 0635628.

Specifications: Cutting Diameter: 1.82 mm (0.0717 in); Flute Length: 15.00 mm; Overall Length: 47.00 mm; Shank Diameter: 3.00 mm; Point Angle: 140 degrees; Drill Bit Type: Carbide Micro Drill Bit; Shank Transition Angle: 15 degrees; Neck Length: 16.00 mm; Coolant Option: External Coolant; Shank Type: Straight.

Unit of measure: Metric.

Specifications

Coating/Finish
Aqua
Coolant Through
No
Cutting Direction
Right
Cutting Diameter (Metric)
1.82
Diameter Fractional Equivalent (Decimal)
0.08
Drill Bit Type
Carbide Micro Drill Bit
Drill Suitable for Drilling in
Carbon Steel, Die Steel, Hardened Steel, Alloy Steel, Hardened Steels, Mold Steels 40~50HRC Hardened Steel, Stainless Steel, Titanium Alloys, Nickel Alloys, Cast Iron
Flute Length (Metric)
15.00
Flute Type
Conventional Spiral
Material
Solid Carbide
Neck Length (Metric)
16.00
Number of Flutes
2
Overall Length (Metric)
47.00
Point Angle
140 degrees
Point Type
Conventional
Series
L9544
Shank Diameter (Metric)
3.00
Shank Transition Angle
15 degrees
Shank Type
Straight
Unit of Measure
Metric
Coolant Option
External Coolant
Cutting Diameter (Decimal)
0.0717
Size System
Metric
L9544 Aqua Micro Drill - 1.82mm
AQUA MICRO DRILL CARBIDE View full description
$41.37
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
