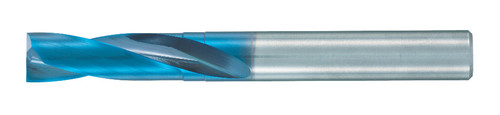

L9610 Aqua EX Flat Bottom Stub - 9.3mm

Nachi

No reviews yet Write a Review
SKU:
NAC-0713706
$165.14

Nachi Drill, manufacturer part number 0713706.

Specifications: Cutting Diameter: 9.30 mm (0.3661 in); Flute Length: 43.00 mm; Overall Length: 80.00 mm; Shank Diameter: 8.00 mm; Point Angle: 180 degrees; Drill Bit Type: Carbide Flat Stub Drill Bit; Shank Transition Angle: 30 degrees; Point Type: Flat; Neck Length: 45.00 mm; Coolant Option: External Coolant; Shank Type: Straight.

Unit of measure: Metric.

Specifications

Coating/Finish
Aqua Ex
Coolant Through
No
Cutting Direction
Right
Cutting Diameter (Metric)
9.30
Diameter Fractional Equivalent (Decimal)
0.37
Drill Bit Type
Carbide Flat Stub Drill Bit
Drill Suitable for Drilling in
Structural Steel, Carbon Steel, Pre-Hardened Steel, Alloy Steel, Hardened Steels, Mold Steels 40~50HRC Hardened Steel, 400 Series Stainless Steel, Cast Iron, Aluminum Alloys, Copper Alloys
Flute Length (Metric)
43.00
Flute Type
Conventional Spiral
Material
Solid Carbide
Neck Length (Metric)
45.00
Number of Flutes
2
Overall Length (Metric)
80.00
Point Angle
180 degrees
Point Type
Flat
Series
L9610
Shank Transition Angle
30 degrees
Shank Type
Straight
Unit of Measure
Metric
Coolant Option
External Coolant
Cutting Diameter (Decimal)
0.3661
Shank Diameter (Metric)
8.00
Size System
Metric
L9610 Aqua EX Flat Bottom Stub - 9.3mm
AQUA DRILL EX FLAT CARBIDE STUB View full description
