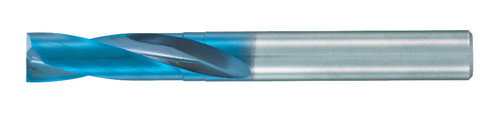

L9610 Aqua EX Flat Bottom Stub - 9.6mm

Nachi

No reviews yet Write a Review
SKU:
NAC-0713729
$165.14

Nachi L9610 drill for steel, stainless steel and cast iron, 2 flutes, 180 degree point, spiral flutes, straight shank, external coolant. Solid carbide, Aqua Ex coating. Manufacturer part number 0713729.

Specifications

Coating/Finish
Aqua Ex
Hand Direction
Right
Cutting Diameter (Metric)
9.60
Secondary Workpiece Material
Non-Ferrous, High-Temp Alloy, Hardened Steel
Drill Bit Type
Carbide Flat Stub Drill Bit
Workpiece Material
Steel, Stainless Steel, Cast Iron
Flute Length (Metric)
43.00
Flute Type
Spiral
Material
Solid Carbide
Neck Length (Metric)
45.00
Number of Flutes
2
Overall Length (Metric)
80.00
Point Angle
180 degrees
Point Type
Flat
Series
L9610
Shank Transition Angle
30 degrees
Shank Type
Straight
Unit of Measure
Metric
Coolant Option
External Coolant
Cutting Diameter (Decimal)
0.3780
Shank Diameter (Metric)
8.00
Size System
Metric
L9610 Aqua EX Flat Bottom Stub - 9.6mm
$165.14
