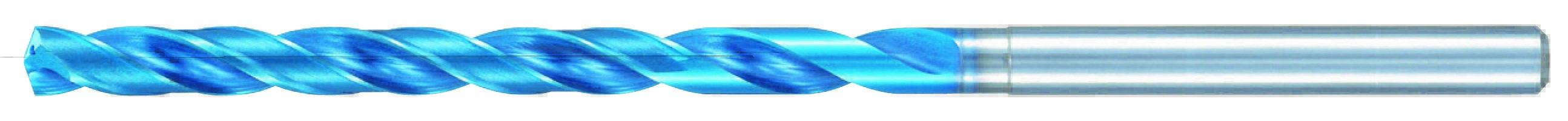

L9612 Aqua EX Oil Hole 10D - 11.8mm

Nachi

No reviews yet Write a Review
SKU:
NAC-0730485
$621.13

Nachi Drill, manufacturer part number 0730485.

Specifications: Cutting Diameter: 11.80 mm (0.4646 in); Flute Length: 156.00 mm; Overall Length: 216.00 mm; Shank Diameter: 12.00 mm; Point Angle: 140 degrees; Drill Bit Type: Carbide 10D Drill Bit; Shank Transition Angle: 45 degrees; Neck Length: 159.00 mm; Coolant Option: Internal Coolant; Shank Type: Straight.

Unit of measure: Metric.

Specifications

Coating/Finish
Aqua Ex
Coolant Through
Yes
Cutting Direction
Right
Cutting Diameter (Metric)
11.80
Diameter Fractional Equivalent (Decimal)
0.47000000000000003
Drill Bit Type
Carbide 10D Drill Bit
Drill Suitable for Drilling in
Structural Steels, Carbon Steels, Cast Irons, Alloy Steels, Heat Treated Steels, Mold Steels, Hardened Steels, Stainless Steels, Nickel Alloys, Titanium Alloys
Flute Length (Metric)
156.00
Flute Type
Conventional Spiral
Material
Solid Carbide
Neck Length (Metric)
159.00
Number of Flutes
2
Overall Length (Metric)
216.00
Point Angle
140 degrees
Point Type
Conventional
Series
L9612
Shank Transition Angle
45 degrees
Shank Type
Straight
Unit of Measure
Metric
Coolant Option
Internal Coolant
Cutting Diameter (Decimal)
0.4646
Shank Diameter (Metric)
12.00
Size System
Metric
L9612 Aqua EX Oil Hole 10D - 11.8mm
AQUA EX COOLANT THRU DRILL 10XD - CARBIDE METRIC View full description
$621.13
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
