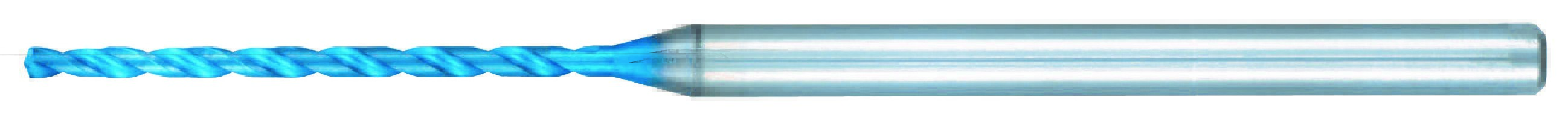

L9614 Aqua EX Oil Hole 15D - 6.8mm

Nachi

No reviews yet Write a Review
SKU:
NAC-0730805
$422.11

Nachi Drill, manufacturer part number 0730805.

Specifications: Cutting Diameter: 6.80 mm (0.2677 in); Flute Length: 126.00 mm; Overall Length: 176.00 mm; Shank Diameter: 7.00 mm; Point Angle: 140 degrees; Drill Bit Type: Carbide 15D Drill Bit; Shank Transition Angle: 45 degrees; Neck Length: 129.00 mm; Coolant Option: Internal Coolant; Shank Type: Straight.

Unit of measure: Metric.

Specifications

Coating/Finish
Aqua Ex
Coolant Through
Yes
Cutting Direction
Right
Cutting Diameter (Metric)
6.80
Diameter Fractional Equivalent (Decimal)
0.27
Drill Bit Type
Carbide 15D Drill Bit
Drill Suitable for Drilling in
Structural Steels, Carbon Steels, Cast Irons, Alloy Steels, Heat Treated Steels, Mold Steels, Hardened Steels, Stainless Steels, Nickel Alloys, Titanium Alloys
Flute Length (Metric)
126.00
Flute Type
Conventional Spiral
Material
Solid Carbide
Neck Length (Metric)
129.00
Number of Flutes
2
Overall Length (Metric)
176.00
Point Angle
140 degrees
Point Type
Conventional
Series
L9614
Shank Transition Angle
45 degrees
Shank Type
Straight
Unit of Measure
Metric
Coolant Option
Internal Coolant
Cutting Diameter (Decimal)
0.2677
Shank Diameter (Metric)
7.00
Size System
Metric
L9614 Aqua EX Oil Hole 15D - 6.8mm
AQUA EX MICRO COOLANT THRU DRILL 15XD - CARBIDE METRIC View full description
$422.11
