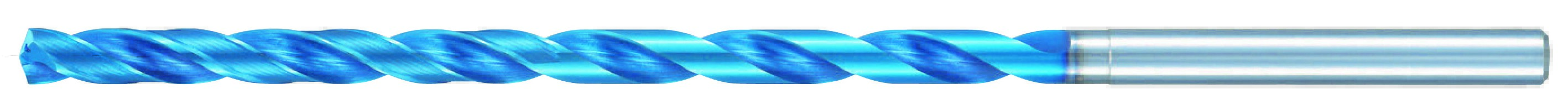

L9615 Aqua EX Oil Hole 15D - 1/4

Nachi

No reviews yet Write a Review
SKU:
NAC-1519223
$399.06

Nachi Drill, manufacturer part number 1519223.

Specifications: Cutting Diameter: 1/4 in (0.2500 in); Flute Length: 117.00 mm; Overall Length: 167.00 mm; Shank Diameter: 7.00 mm; Point Angle: 140 degrees; Drill Bit Type: Carbide 15D Drill Bit; Shank Transition Angle: 45 degrees; Neck Length: 120.00 mm; Coolant Option: Internal Coolant; Shank Type: Straight.

Unit of measure: Inch.

Specifications

Coating/Finish
Aqua Ex
Coolant Through
Yes
Cutting Direction
Right
Cutting Diameter (Fractional)
1/4
Diameter Fractional Equivalent (Decimal)
0.25
Drill Bit Type
Carbide 15D Drill Bit
Drill Suitable for Drilling in
Structural Steels, Carbon Steels, Cast Irons, Alloy Steels, Heat Treated Steels, Mold Steels, Hardened Steels, Stainless Steels, Nickel Alloys, Titanium Alloys
Flute Length (Metric)
117.00
Flute Type
Conventional Spiral
Material
Solid Carbide
Neck Length (Metric)
120.00
Number of Flutes
2
Overall Length (Metric)
167.00
Point Angle
140 degrees
Point Type
Conventional
Series
L9615
Shank Diameter (Metric)
7.00
Shank Transition Angle
45 degrees
Shank Type
Straight
Unit of Measure
Inch
Coolant Option
Internal Coolant
Cutting Diameter (Decimal)
0.2500
Size System
Fractional
L9615 Aqua EX Oil Hole 15D - 1/4
AQUA EX COOLANT THRU DRILL 15XD - CARBIDE FRACTIONAL View full description
$399.06
