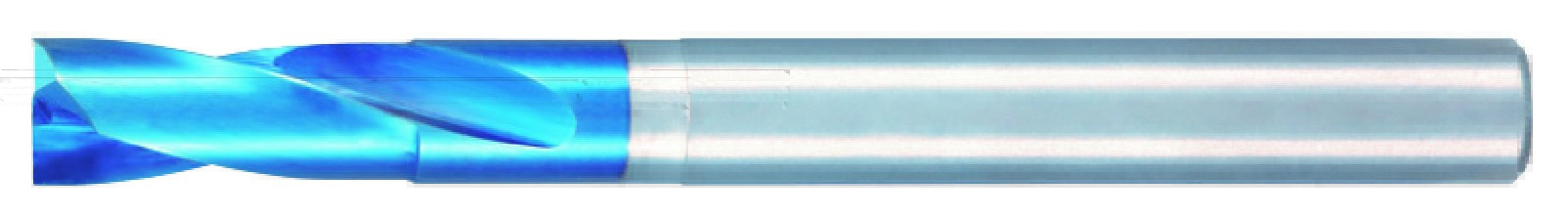

L9628 Aqua EX Flat Bottom Super Stub - 4.9mm

Nachi

No reviews yet Write a Review
SKU:
NAC-0765244
$79.65
  • Carbide High Performance Flat Bottom Drill
  • AQUA EX Coated For High Wear Resistance
  • Single Margin, Sharp Corner Design
  • 180° Point Angle
  • Precision h6 Ground Shank

    • Specifications

    Coating/Finish
    Aqua Ex
    Coolant Through
    Yes
    Cutting Direction
    Right
    Diameter
    4.90 mm
    Diameter Fractional Equivalent (Decimal)
    0.2
    Drill Bit Type
    Carbide Flat Stub Drill Bit
    Drill Suitable for Drilling in
    Cast Iron, Carbon Steel, Alloy Steel (20~30HRC), Mold Steel (30~35HRC), Hardened Steel, Ductile Cast Iron, Aluminum Alloy, Aluminum Casting
    Flute Length
    18 mm
    Flute Type
    Conventional Spiral
    Material
    Solid Carbide
    Number of Flutes
    2
    Overall Length
    60 mm
    Point Angle
    180 degrees
    Point Type
    Flat
    Series
    L9628
    Shank Type
    Endmill Type
    Type
    Flat Bottom
    Unit of Measure
    Metric
    L9628 Aqua EX Flat Bottom Super Stub - 4.9mm
    AQUA DRILL EX FLAT CARBIDE SUPER STUB View full description
