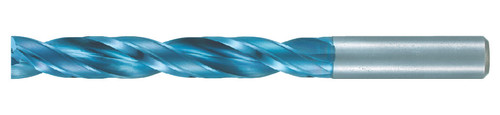

L9814 Aqua EX Flat Bottom Oil Hole 3D - 10.8mm

Nachi

No reviews yet Write a Review
SKU:
NAC-0720540
$447.24

Nachi Drill, manufacturer part number 0720540.

Specifications: Cutting Diameter: 10.80 mm (0.4252 in); Flute Length: 72.00 mm; Overall Length: 138.00 mm; Shank Diameter: 11.00 mm; Point Angle: 180 degrees; Drill Bit Type: Carbide Flat OH Drill Bit; Point Type: Flat; Coolant Option: Internal Coolant; Shank Type: Straight.

Unit of measure: Metric.

Specifications

Coating/Finish
Aqua Ex
Hand Direction
Right
Cutting Diameter (Metric)
10.80
Secondary Workpiece Material
High-Temp Alloy, Hardened Steel
Drill Bit Type
Carbide Flat OH Drill Bit
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous
Flute Length (Metric)
72.00
Flute Type
Spiral
Material
Solid Carbide
Number of Flutes
2
Overall Length (Metric)
138.00
Point Angle
180 degrees
Point Type
Flat
Series
L9814
Shank Diameter (Metric)
11.00
Shank Type
Straight
Unit of Measure
Metric
Coolant Option
Internal Coolant
Cutting Diameter (Decimal)
0.4252
Size System
Metric
L9814 Aqua EX Flat Bottom Oil Hole 3D - 10.8mm
AQUA EX FLAT DRILL 5xD OIL HOLE-CARBIDE METRIC View full description
$447.24
