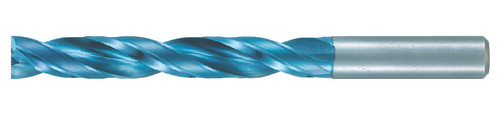

L9814 Aqua EX Flat Bottom Oil Hole 3D - 4.1mm

Nachi

No reviews yet Write a Review
SKU:
NAC-0719871
$194.76

Nachi Drill, manufacturer part number 0719871.

Specifications: Cutting Diameter: 4.10 mm (0.1614 in); Flute Length: 28.00 mm; Overall Length: 90.00 mm; Shank Diameter: 5.00 mm; Point Angle: 180 degrees; Drill Bit Type: Carbide Flat OH Drill Bit; Point Type: Flat; Coolant Option: Internal Coolant; Shank Type: Straight.

Unit of measure: Metric.

Specifications

Coating/Finish
Aqua Ex
Coolant Through
Yes
Cutting Direction
Right
Cutting Diameter (Metric)
4.10
Diameter Fractional Equivalent (Decimal)
0.17
Drill Bit Type
Carbide Flat OH Drill Bit
Drill Suitable for Drilling in
Structural Steel, Carbon Steel, Pre-Hardened Steel, Alloy Steel, Hardened Steels, Mold Steels 40~50HRC Hardened Steel, Stainless Steel, Titanium Alloys, Nickel Alloys, Cast Iron, Aluminum Alloys, Copper Alloys
Flute Length (Metric)
28.00
Flute Type
Conventional Spiral
Material
Solid Carbide
Number of Flutes
2
Overall Length (Metric)
90.00
Point Angle
180 degrees
Point Type
Flat
Series
L9814
Shank Diameter (Metric)
5.00
Shank Type
Straight
Unit of Measure
Metric
Coolant Option
Internal Coolant
Cutting Diameter (Decimal)
0.1614
Size System
Metric
L9814 Aqua EX Flat Bottom Oil Hole 3D - 4.1mm
AQUA EX FLAT DRILL 5xD OIL HOLE-CARBIDE METRIC View full description
$194.76
