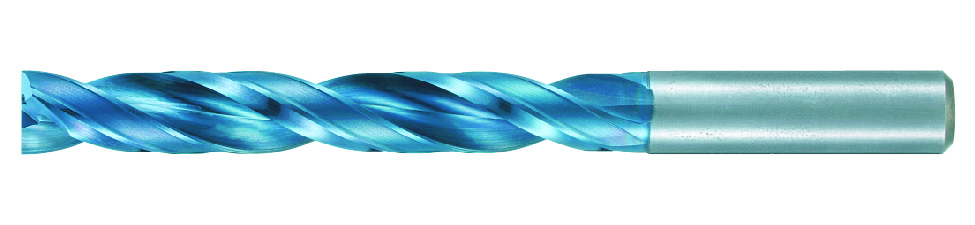

L9814 Aqua EX Flat Bottom Oil Hole 3D - 6.9mm

Nachi

No reviews yet Write a Review
SKU:
NAC-0720155
$289.30

Nachi L9814 drill for steel, stainless steel, cast iron and non-ferrous metals, 2 flutes, 180 degree point, spiral flutes, straight shank, internal coolant. Solid carbide, Aqua Ex coating. Manufacturer part number 0720155.

Specifications

Coating/Finish
Aqua Ex
Hand Direction
Right
Cutting Diameter (Metric)
6.90
Secondary Workpiece Material
High-Temp Alloy, Hardened Steel
Drill Bit Type
Carbide Flat OH Drill Bit
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous
Flute Length (Metric)
45.00
Flute Type
Spiral
Material
Solid Carbide
Number of Flutes
2
Overall Length (Metric)
101.00
Point Angle
180 degrees
Point Type
Flat
Series
L9814
Shank Diameter (Metric)
7.00
Shank Type
Straight
Unit of Measure
Metric
Coolant Option
Internal Coolant
Cutting Diameter (Decimal)
0.2717
Size System
Metric
L9814 Aqua EX Flat Bottom Oil Hole 3D - 6.9mm
$289.30
